109TTA016M - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Axial Leaded 10000uF 16V 20% LYTICS/IC

Download 109TTA016M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
109TTA016M - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

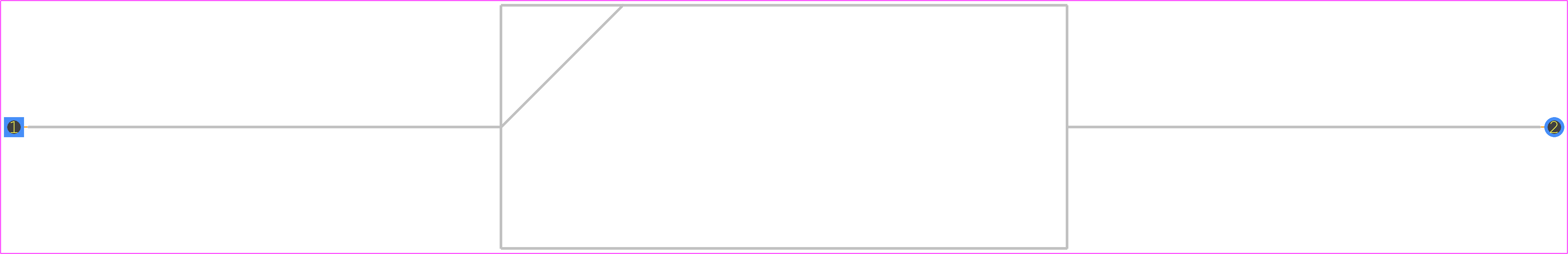

109TTA016M - Cornell Dubilier PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x41
click to zoom
3D Models
109TTA016M - Cornell Dubilier - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - 18x41
click to zoom

109TTA016M Details

  • Manufacturer Part Number:

    109TTA016M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    63 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    4.8 mA

  • Length:

    41 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    16 V

  • Ripple Current:

    2520 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.38

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

109TTA016M Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 109TTA016M is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The 109TTA016M is designed to operate in humid environments, but it's essential to follow the manufacturer's guidelines for humidity ratings and ensure proper sealing and encapsulation to prevent moisture ingress.
  • The ESR of the 109TTA016M is not explicitly stated in the datasheet, but it can be estimated to be around 10-20 mΩ based on similar capacitors from Cornell Dubilier Electronics Inc. However, it's recommended to consult with the manufacturer or a reliable source for accurate ESR values.
  • Yes, the 109TTA016M is suitable for use in DC-DC converter applications due to its low ESR, high ripple current rating, and high reliability. However, it's essential to ensure the capacitor is properly sized and selected for the specific application requirements.
