381LQ331M400K032 - Cornell Dubilier

Description: Cornell-Dubilier 330µF 400V dc Aluminium Electrolytic Capacitor, Through Hole 30 x 35mm +85°C 30mm 10mm 35mm

Download 381LQ331M400K032 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
381LQ331M400K032 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

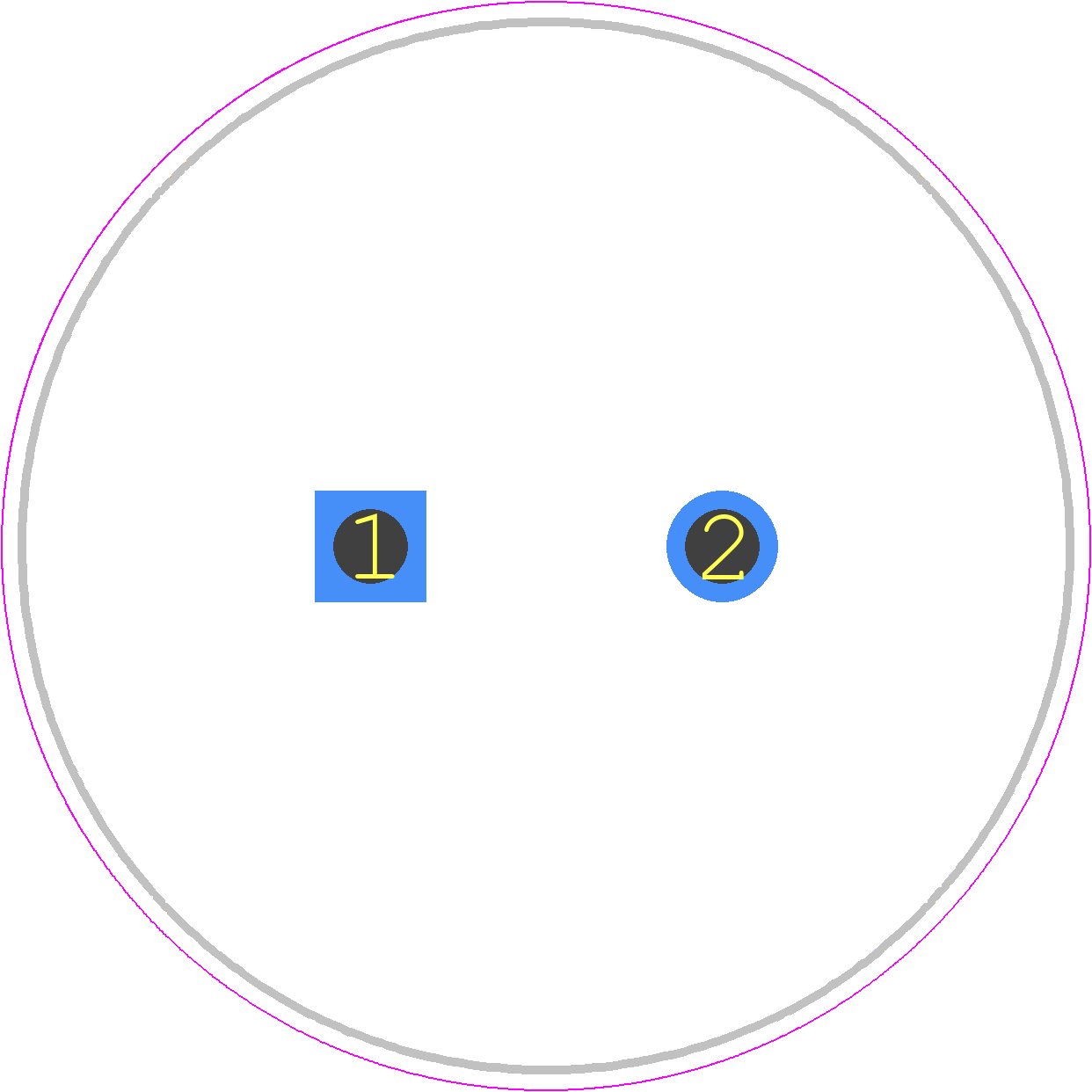

381LQ331M400K032 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - ggg
click to zoom
3D Models
381LQ331M400K032 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - ggg
click to zoom

381LQ331M400K032 Details

  • Manufacturer Part Number:

    381LQ331M400K032

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    553 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.09 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    400 V

  • Ripple Current:

    1440 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

381LQ331M400K032 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 381LQ331M400K032 is 260°C (500°F) for a maximum of 10 seconds.
  • Yes, the 381LQ331M400K032 is designed for high-reliability applications and meets the requirements of MIL-PRF-123 and MIL-PRF-39006.
  • Yes, the 381LQ331M400K032 is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.
  • The shelf life of the 381LQ331M400K032 is 2 years from the date of manufacture, as long as it is stored in its original packaging and under controlled environmental conditions.
  • Yes, the 381LQ331M400K032 is RoHS and REACH compliant, and meets the requirements of the European Union's directives on the restriction of hazardous substances.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

381LQ331M400K032 Overview

Use the download button to access the 381LQ331M400K032 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 381LQ, or try a keyword search, such as Ceramic Capacitors
