381LQ331M450K452 - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - Snap In 330uF 450V 20%

Download 381LQ331M450K452 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
381LQ331M450K452 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

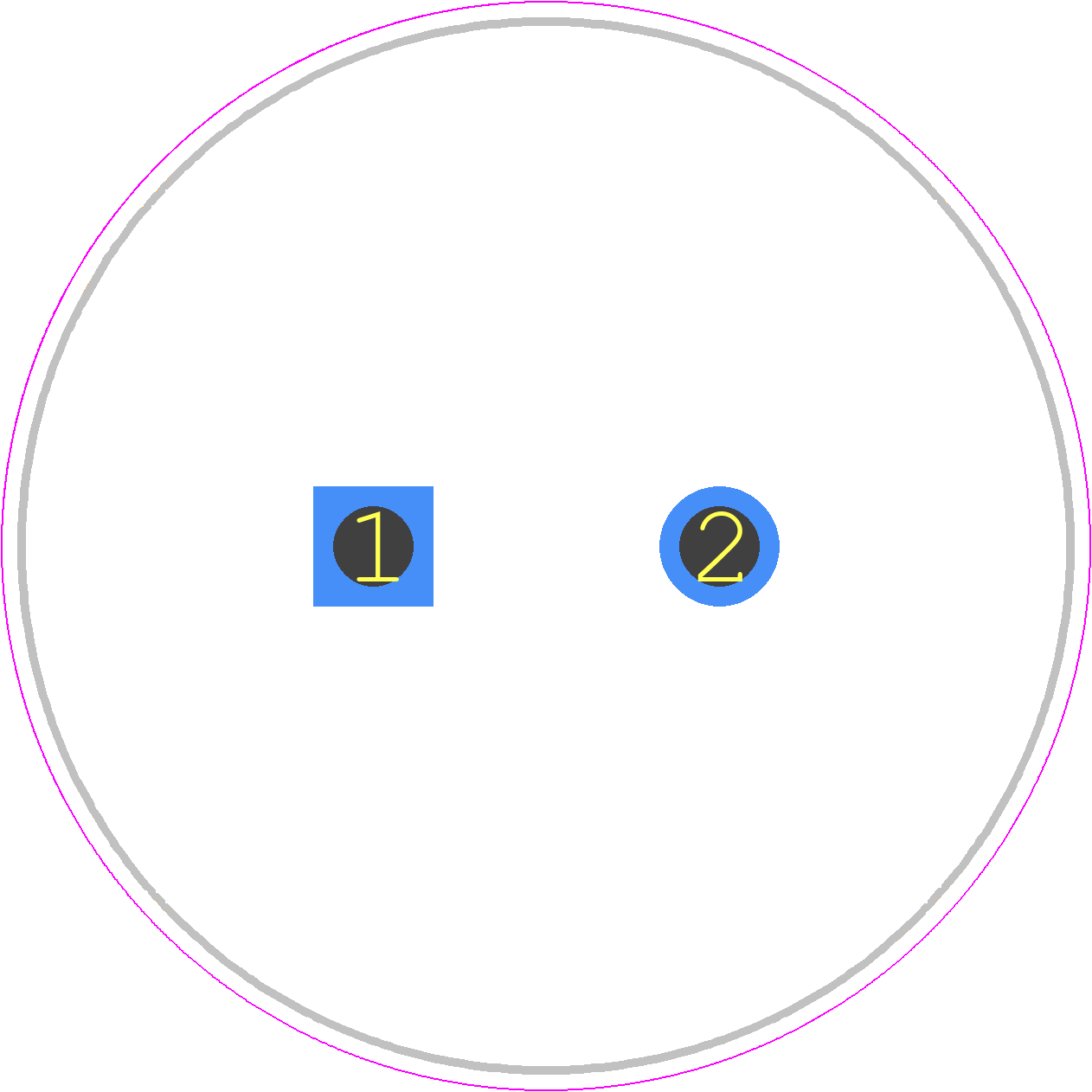

381LQ331M450K452 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 381LQ331M450K452
click to zoom
3D Models
381LQ331M450K452 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 381LQ331M450K452
click to zoom

381LQ331M450K452 Details

  • Manufacturer Part Number:

    381LQ331M450K452

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    330 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    553 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    1.1561 mA

  • Length:

    45 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    1380 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    TIN

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

381LQ331M450K452 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3-5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the 381LQ331M450K452 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its reliability in demanding applications.
  • The 381LQ331M450K452 capacitor is designed to have a long lifespan with minimal degradation over time. However, it's essential to follow the recommended storage and operating conditions to ensure optimal performance. The capacitor's capacitance may decrease by 2-3% after 1,000 hours of operation at 125°C.
  • Yes, the 381LQ331M450K452 capacitor is designed and manufactured to meet the stringent requirements of high-reliability applications, including aerospace and defense. It's built with high-quality materials and undergoes rigorous testing to ensure its performance and reliability.
  • The 381LQ331M450K452 capacitor is designed to operate in a wide range of environmental conditions, including humid and moist environments. However, it's essential to follow the recommended operating conditions and ensure the capacitor is properly sealed to prevent moisture ingress.
