The recommended operating temperature range for the 5962-8944101CA is -40°C to 125°C, as specified in the datasheet. However, it's essential to note that the device's performance and reliability may degrade if operated outside this range.
To ensure proper power and decoupling, follow these guidelines: use a stable power supply with a low noise floor, decouple the power pins with 0.1 μF and 10 μF capacitors, and maintain a clean and quiet power plane. Additionally, ensure that the power supply can provide the required current and voltage for the device.
The maximum clock frequency supported by the 5962-8944101CA is 100 MHz, as specified in the datasheet. However, it's essential to consider the device's internal clock domain crossing and clock skew when designing the system.
To handle the 5962-8944101CA's JTAG interface, use a JTAG adapter or a debug probe that supports the IEEE 1149.1 standard. Ensure that the JTAG clock frequency is within the recommended range (typically 10-100 kHz), and use a suitable JTAG software tool to access and control the device.
When designing the PCB layout and routing for the 5962-8944101CA, consider the following: keep signal traces short and direct, use a solid ground plane, avoid crossing signal traces over power planes, and maintain a consistent impedance for high-speed signals. Additionally, follow the recommended pinout and package guidelines to minimize signal integrity issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
5962-8944101CA Overview

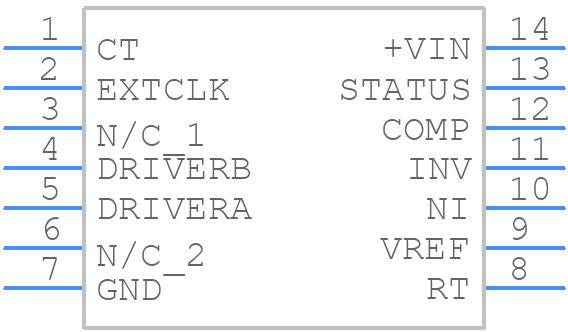

Use the download button to access the 5962-8944101CA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 5962-,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
