The UC1901J is a high-frequency device, and proper layout and placement are crucial. TI recommends keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
The UC1901J requires a stable bias voltage (VCC) between 4.5V and 5.5V. Improper biasing can lead to unstable operation, oscillations, or even damage to the device. Ensure the bias voltage is well-regulated and decoupled, and that the input voltage (VIN) is within the recommended range.
The UC1901J has a maximum junction temperature (TJ) of 150°C. Ensure good thermal conduction by using a heat sink or a thermally conductive PCB material. Keep the device away from heat sources, and use thermal vias or thermal pads to dissipate heat. Monitor the device temperature and adjust the design accordingly.
To troubleshoot issues with the UC1901J, start by verifying the power supply and bias voltage. Check for proper decoupling, and ensure the input and output traces are properly routed. Use an oscilloscope to monitor the input and output waveforms, and check for signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
The UC1901J is a high-frequency device that can generate electromagnetic interference (EMI). Ensure compliance with regulatory standards (e.g., FCC, CE) by using proper shielding, filtering, and grounding techniques. Use a metal enclosure, and consider using EMI filters or common-mode chokes to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1901J Overview

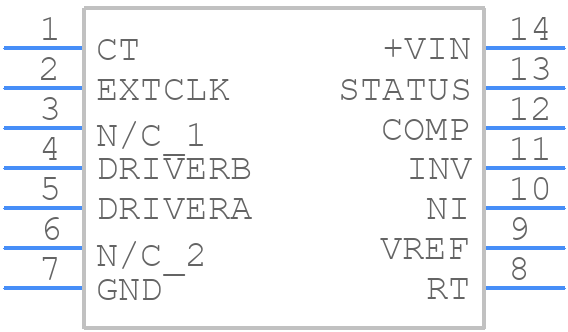

Use the download button to access the UC1901J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC190,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
