A good PCB layout for the UC1901J883B involves keeping the input and output stages separate, using a star-ground configuration, and placing the input filter components close to the IC. Additionally, using a solid ground plane and minimizing trace lengths can help reduce EMI.
To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10 ohms) in series with the output capacitor can help dampen oscillations.
The UC1901J883B can handle input voltages up to 40V, but it's recommended to keep the input voltage below 30V to ensure reliable operation and minimize the risk of damage.
The UC1901J883B is rated for operation up to 125°C, but it's recommended to derate the output power and input voltage as the temperature increases to ensure reliable operation. Consult the datasheet for specific derating guidelines.
To troubleshoot issues with the UC1901J883B, start by checking the input voltage, output voltage, and current. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. If the issue persists, consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
UC1901J883B Overview

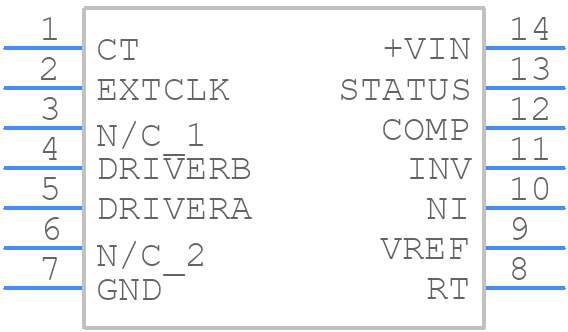

Use the download button to access the UC1901J883B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like UC190,
or try a keyword search, such as Other Signal Circuits
