Texas Instruments provides a recommended PCB layout guide in their application note '66AK2E05 PCB Layout Guidelines' (SLAU575). It's essential to follow these guidelines to ensure optimal performance, reduce noise, and minimize signal integrity issues.
The 66AK2E05 has a complex power management system. Refer to the 'Power Management' section in the datasheet and the '66AK2E05 Power Management User's Guide' (SPRUHF5) for detailed information on configuring the device for optimal power management. Additionally, use the TI Power Estimator tool to estimate power consumption and optimize the design.
The 66AK2E05 has a high thermal design power (TDP). Ensure proper thermal management by using a heat sink, thermal interface material, and following the thermal design guidelines in the datasheet. Also, refer to the 'Thermal Design Considerations' section in the '66AK2E05 Thermal Design Guide' (SPRUHF6) for more information.
The 66AK2E05 supports DDR4 memory interface. Refer to the 'DDR4 Memory Interface' section in the datasheet and the '66AK2E05 DDR4 Memory Interface User's Guide' (SPRUHF7) for detailed information on implementing the DDR4 memory interface. Additionally, use the TI DDR4 Calculator tool to ensure correct timing and configuration.
For high-reliability or safety-critical applications, refer to the 'Reliability and Safety' section in the datasheet and the '66AK2E05 Reliability and Safety Manual' (SPRUHF8). Ensure compliance with relevant industry standards, such as IEC 61508 or ISO 26262, and follow the guidelines for fault detection, error correction, and system design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2E05XABD4 Overview

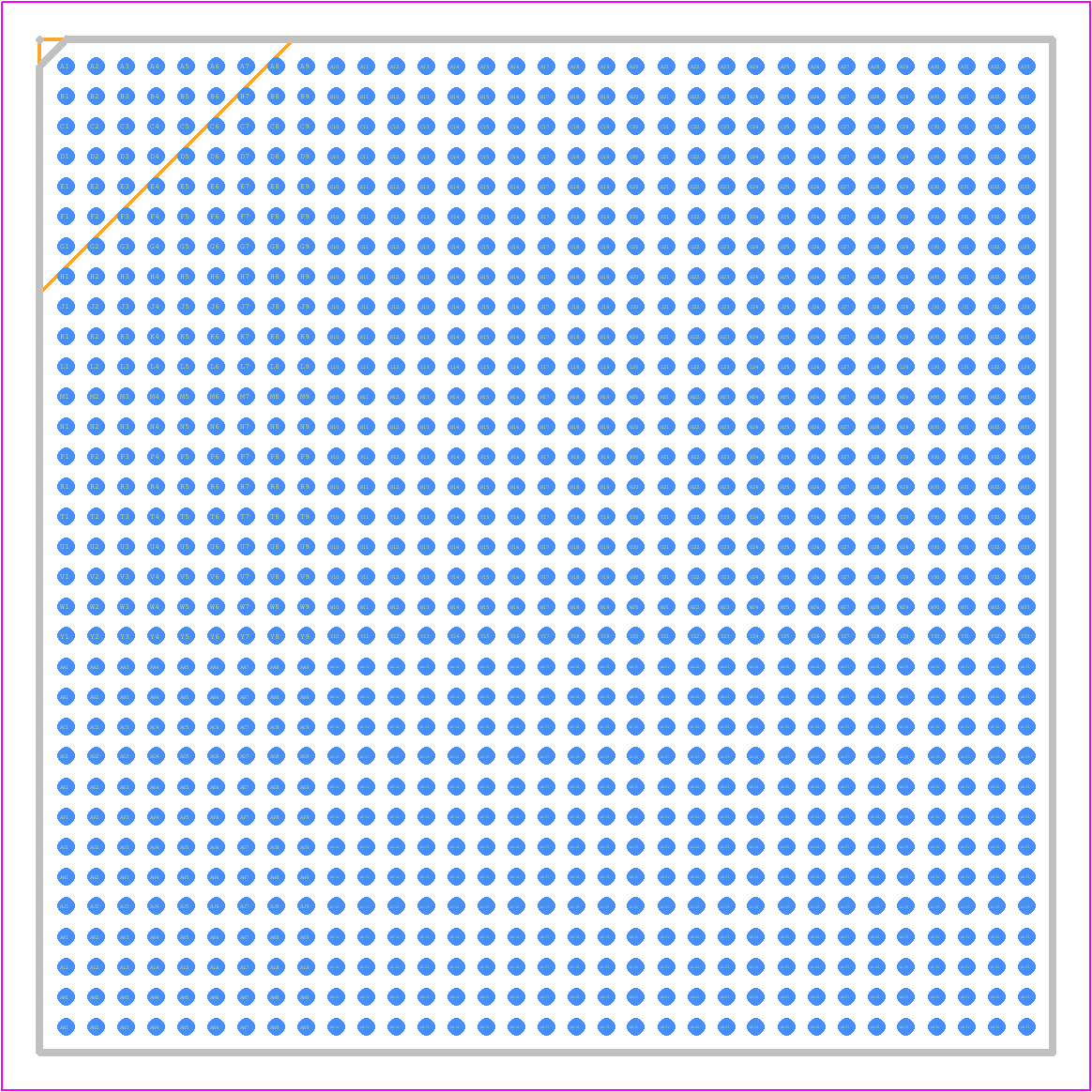

Use the download button to access the 66AK2E05XABD4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Microprocessors
