66AK2E05XABDA4 - Texas Instruments

Description: Digital Signal Processors & Controllers - DSP, DSC Multicore DSP+Arm, 4x Arm A15 cores, 1x C66x DSP core, NetCP, 10GbE switch 1089-FCBGA -40 to 100

Download 66AK2E05XABDA4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
66AK2E05XABDA4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

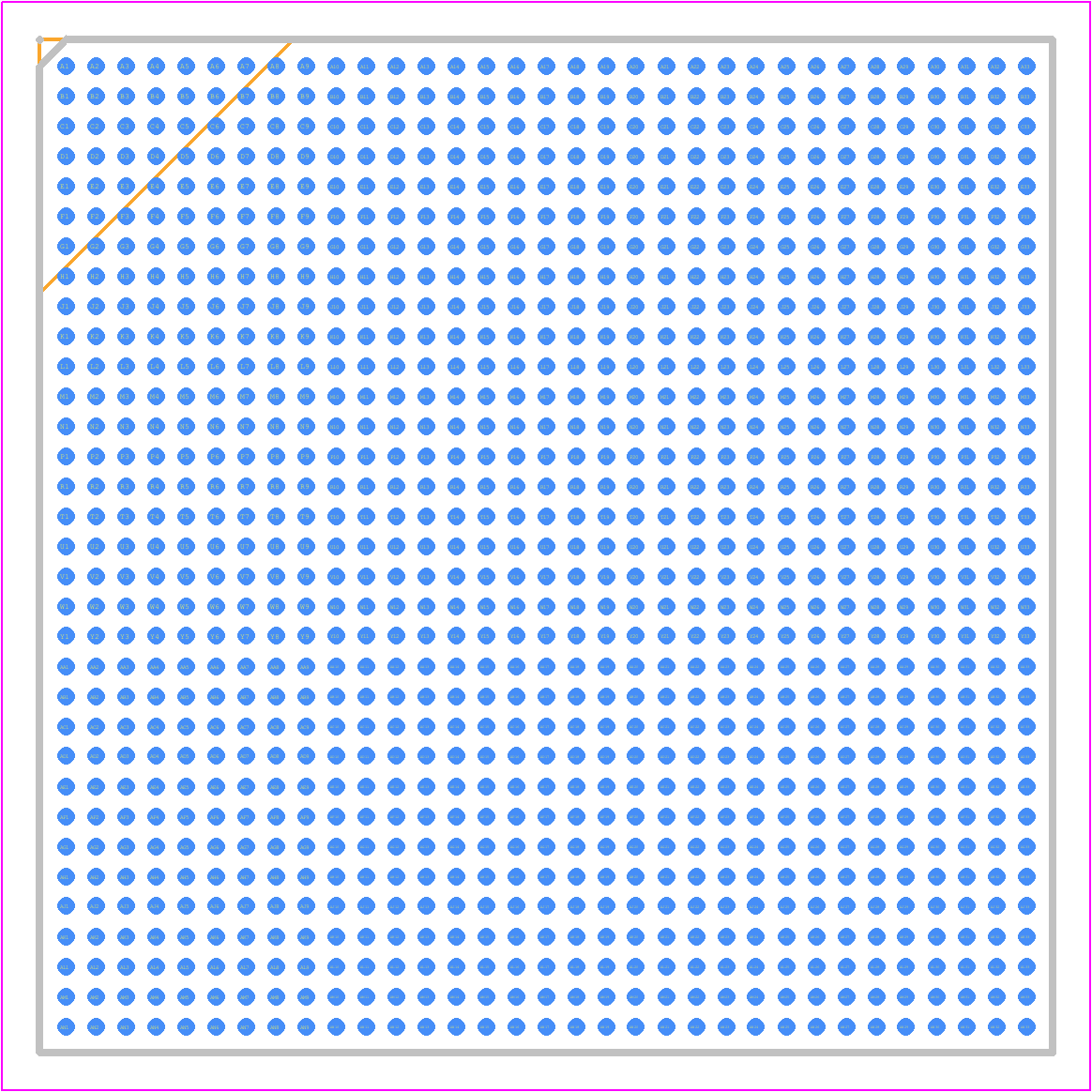

66AK2E05XABDA4 - Texas Instruments PCB footprint - BGA - BGA - AM5K2E02XABD25
click to zoom
3D Models
66AK2E05XABDA4 - Texas Instruments - 3D model - BGA - AM5K2E02XABD25
click to zoom

66AK2E05XABDA4 Details

  • Manufacturer Part Number:

    66AK2E05XABDA4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A002.A

  • HTS Code:

    8542.31.00.75

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B1089

  • Length:

    27 mm

  • Moisture Sensitivity Level:

    4

  • Number of Terminals:

    1089

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Seated Height-Max:

    3.55 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

  • uPs/uCs/Peripheral ICs Type:

    SoC

66AK2E05XABDA4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'High-Speed PCB Layout Guidelines' application report (SLVA626) for optimal performance.
  • The power supply design should ensure a stable voltage supply to the device. Use a low-ESR capacitor and a ferrite bead or a power inductor to filter the power supply noise. Also, ensure that the power supply voltage is within the recommended operating range.
  • The maximum operating frequency of the 66AK2E05XABDA4 is 1.5 GHz, but it can be overclocked to 1.7 GHz with proper cooling and power management.
  • Implement thermal management by using a heat sink or a thermal interface material (TIM) to dissipate heat. Ensure good airflow around the device and avoid blocking the airflow. Also, consider using a thermal monitoring system to monitor the device temperature.
  • The recommended clocking scheme for the 66AK2E05XABDA4 is to use a single clock source for all the domains. Use a clock generator or a phase-locked loop (PLL) to generate the required clock frequencies.
