66AK2H12AXAAW2 - Texas Instruments

66AK2H12AXAAW2 Details

• Manufacturer Part Number:

  66AK2H12AXAAW2

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

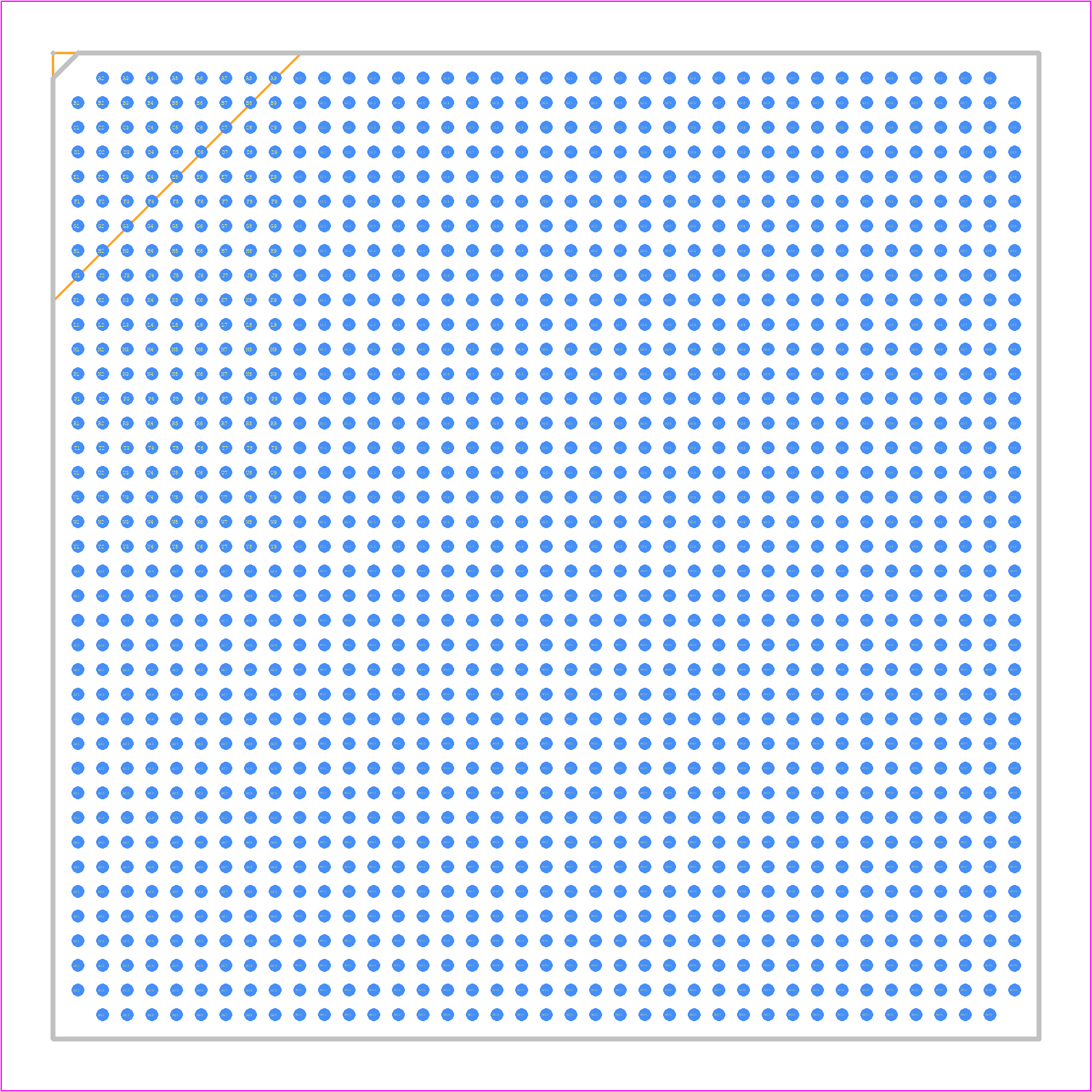

• Part Package Code:

  BGA

• Package Description:

  PLASTIC, FCBGA-1517

• Pin Count:

  1517

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Address Bus Width:

  24

• Boundary Scan:

  YES

• Clock Frequency-Max:

  156.25 MHz

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PBGA-B1517

• Length:

  40 mm

• Low Power Mode:

  YES

• Number of Terminals:

  1517

• Operating Temperature-Max:

  85 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Seated Height-Max:

  3.75 mm

• Speed:

  1200 MHz

• Supply Voltage-Max:

  1.05 V

• Supply Voltage-Min:

  0.95 V

• Supply Voltage-Nom:

  1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  OTHER

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Width:

  40 mm

• uPs/uCs/Peripheral ICs Type:

  SoC
