Texas Instruments provides a recommended PCB layout guide for the 66AK2H14AAAW24, which includes guidelines for signal routing, power distribution, and thermal management. It's essential to follow this guide to ensure optimal performance and minimize signal integrity issues.
To optimize power consumption, it's recommended to use the device's power-saving features, such as dynamic voltage and frequency scaling, and to optimize the system's clock frequency and voltage settings. Additionally, using a low-power mode or shutdown mode when the device is not in use can help reduce power consumption.
The 66AK2H14AAAW24 has a high thermal design power (TDP) of 25W, so it's essential to implement proper thermal management to prevent overheating. This includes using a heat sink, thermal interface material, and ensuring good airflow around the device.
To ensure signal integrity and minimize EMI, it's recommended to follow proper PCB design practices, such as using differential signaling, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, using a signal integrity analysis tool can help identify and mitigate potential signal integrity issues.
When using the 66AK2H14AAAW24 in a harsh environment, it's essential to consider the device's operating temperature range, humidity, and vibration tolerance. Additionally, using conformal coating, potting, or other environmental protection methods can help ensure the device's reliability in harsh environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
66AK2H14AAAW24 Overview

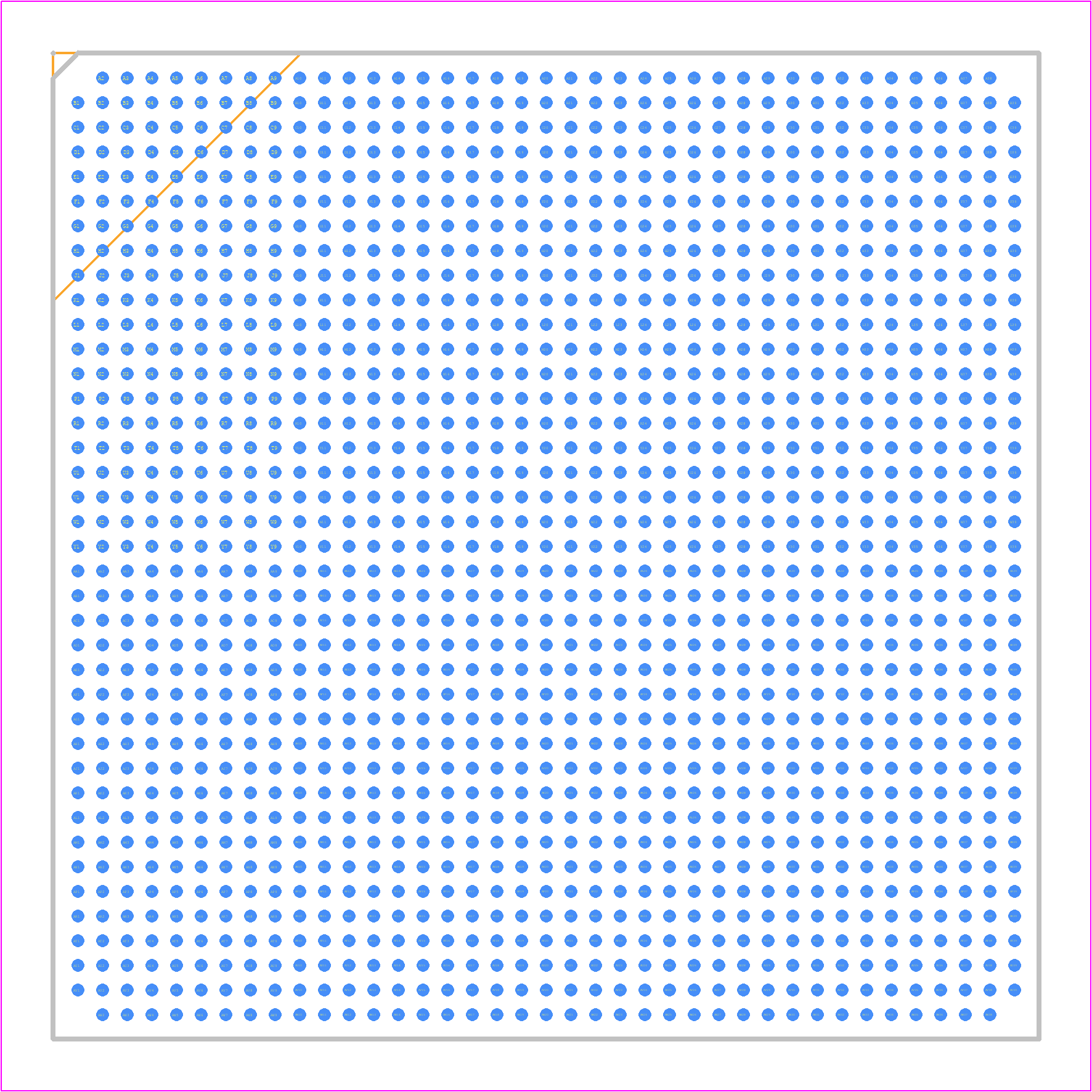

Use the download button to access the 66AK2H14AAAW24 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 66AK2,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
