- Part Number 6N137M
- Manufacturer Lite-On
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages

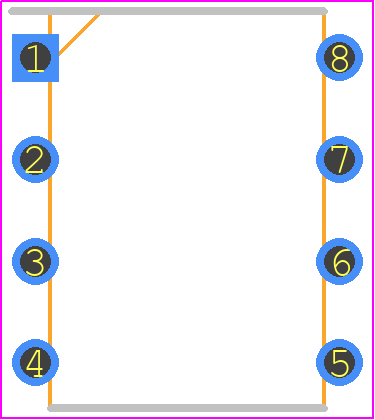

- Footprint Name Dual-In-Line Packages - 8-PDIP
- Released Date Oct 28, 2015
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
6N137M Details
-
Manufacturer Part Number:
6N137M
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8541.40.80.00
-
Factory Lead Time:
16 Weeks
-
Manufacturer:
Lite-On Semiconductor Corporation
-
Additional Feature:
CMOS COMPATIBLE, UL APPROVED, CAN ALSO OPERATE ON 5V
-
Configuration:
SINGLE
-
Data Rate-Nom:
15 MBps
-
Forward Current-Max:
0.02 A
-
Isolation Voltage-Max:
5000 V
6N137M Frequently Asked Questions (FAQs)
-
The 6N137M can operate safely between -40°C to 100°C, but the optimal operating temperature range is between 0°C to 70°C for reliable performance.
-
To ensure proper biasing, connect the anode of the LED to a voltage source through a current-limiting resistor, and connect the cathode to ground. The recommended forward current is 10mA to 20mA.
-
The maximum voltage that can be applied to the output of the 6N137M is 30V, but it's recommended to keep it below 15V for reliable operation.
-
Choose a resistor that limits the current to 10mA to 20mA, depending on the desired brightness and power consumption. A higher resistor value will reduce the current, while a lower value will increase it.
-
The 6N137M has a bandwidth of up to 10MHz, making it suitable for high-frequency applications. However, the actual bandwidth may vary depending on the specific application and circuit design.
Trust Checks
Community Provided
System Verified
Community Approved
6N137M Overview

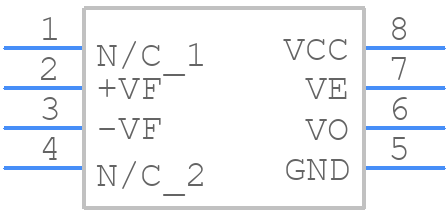

Use the download button to access the 6N137M schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6N137,
or try a keyword search, such as Optocoupler
