Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using thermal vias, wide copper traces, and a solid ground plane to dissipate heat efficiently.
To ensure reliable operation in high-temperature environments, it's crucial to follow the recommended operating temperature range, use a suitable thermal interface material, and implement adequate cooling mechanisms, such as heat sinks or fans.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially catastrophic failure. It's essential to monitor and control the device temperature to prevent overheating.
The 6PAIC23BIPWRG4Q1 is a commercial-grade device, and its use in high-reliability or safety-critical applications may require additional qualification, testing, and validation. It's recommended to consult with Texas Instruments or a qualified reliability engineer to determine the device's suitability for such applications.
To troubleshoot and debug issues with the 6PAIC23BIPWRG4Q1, use a combination of tools, such as oscilloscopes, logic analyzers, and debugging software, to identify and isolate the problem. Consult the datasheet, application notes, and Texas Instruments' support resources for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
6PAIC23BIPWRG4Q1 Overview

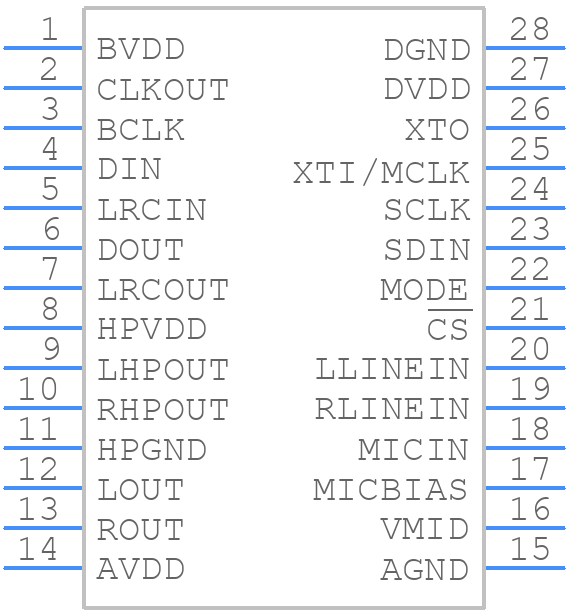

Use the download button to access the 6PAIC23BIPWRG4Q1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 6PAIC,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
