72V851L10PFG - Renesas Electronics

Description: The 72V851is a 8K x 9 dual synchronous FIFO that is functionally equivalent to two 72V251 FIFOs in a single package with all associated control, data, and flag lines assigned to separate pins. Each FIFOs has a 9-bit input and output data port. The Read Clock can be tied to the Write Clock for single clock operation or the two clocks can run asynchronous of one another for dual clock operation.

Download 72V851L10PFG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

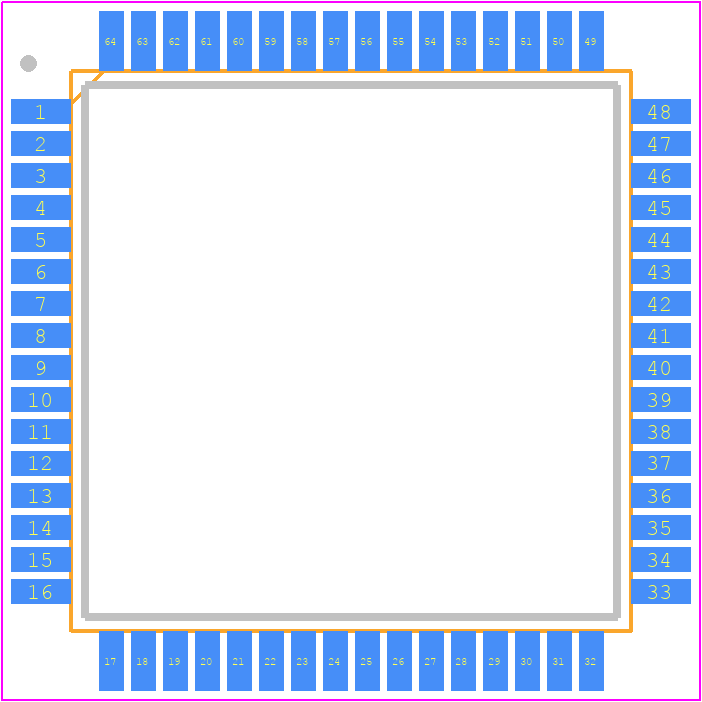

72V851L10PFG - Renesas Electronics PCB footprint - Quad Flat Packages - Quad Flat Packages - PNG64_
click to zoom
3D Models
72V851L10PFG - Renesas Electronics  - 3D model - Quad Flat Packages - PNG64_
click to zoom

72V851L10PFG Details

  • Manufacturer Part Number:

    72V851L10PFG

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TQFP

  • Pin Count:

    64

  • Manufacturer Package Code:

    PNG64

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Access Time-Max:

    6.5 ns

  • Clock Frequency-Max (fCLK):

    100 MHz

  • Cycle Time:

    10 ns

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Memory Density:

    73728 bit

  • Memory IC Type:

    BI-DIRECTIONAL FIFO

  • Memory Width:

    9

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    70 °C

  • Organization:

    8KX9

  • Output Enable:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Standby Current-Max:

    0.01 A

  • Supply Current-Max:

    0.04 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

72V851L10PFG Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the 72V851L10PFG, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
  • The 72V851L10PFG has a built-in overcurrent protection feature, but it's recommended to implement an external overcurrent protection circuit to ensure reliable operation. Renesas provides application notes and reference designs for overcurrent protection implementation.
  • The 72V851L10PFG has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability. Consult the datasheet for more information on temperature derating.
  • Renesas provides guidelines for EMC design and testing in their application notes and reference designs. It's recommended to follow these guidelines to ensure compliance with EMC regulations and to minimize electromagnetic interference (EMI).
  • The recommended power-up sequence for the 72V851L10PFG is to apply the power supply voltage (VCC) before the input clock signal. This ensures proper device initialization and prevents potential latch-up or damage to the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

72V851L10PFG Overview

Use the download button to access the 72V851L10PFG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 72V85, or try a keyword search, such as FIFOs
