Description:The 82V3001A is a WAN PLL with single reference input. It contains a Digital Phase-Locked Loop (DPLL), which generates ST-BUS clocks and framing signals that are phase locked to a 2.048 MHz, 1.544 MHz or 8 kHz input reference. The 82V3001A provides eight types of clock signals (C1.5o, C3o, C6o, C2o, C4o, C8o, C16o, C32o) and six types of framing signals (F0o, F8o, F16o, F32o, RSP, TSP) for the multitrunk T1 and E1 primary rate transmission links. The 82V3001A is compliant with AT&T TR62411, Telcordia GR- 12
Renesas provides a recommended PCB layout guide in their application note (R01AN3601EU0100) which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The 82V3001APVG8 has a built-in power sequencing feature. To implement it, connect the PSON pin to a digital signal, and the device will sequence the power rails according to the timing specified in the datasheet. Additionally, Renesas provides an application note (R01AN3602EU0100) that provides more detailed information on power sequencing.
The 82V3001APVG8 has an operating temperature range of -40°C to 105°C, but it's recommended to operate within the range of -20°C to 85°C for optimal performance and reliability.
Renesas provides a troubleshooting guide in their application note (R01AN3603EU0100) that covers common issues, such as power-on reset, voltage regulator faults, and clocking issues. Additionally, Renesas offers a support portal with FAQs, documentation, and contact information for further assistance.
Renesas recommends using a 10kΩ resistor and a 10pF capacitor for the external clock circuit. The specific component values may vary depending on the application, but these values provide a good starting point for most designs.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
82V3001APVG8 Overview

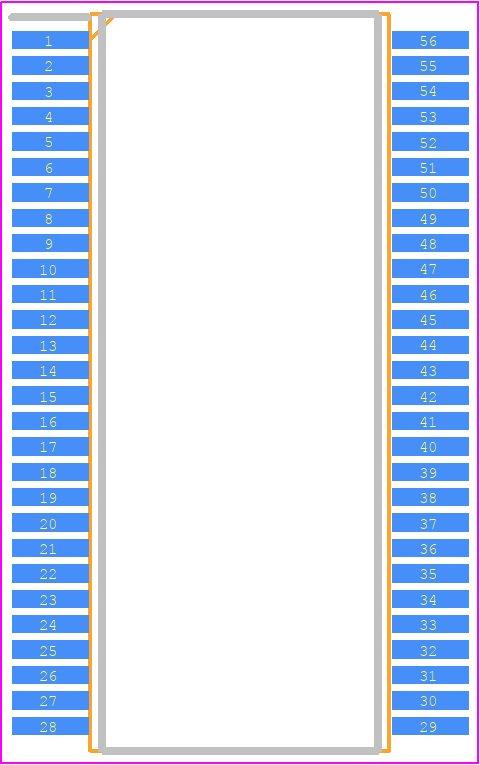

Use the download button to access the 82V3001APVG8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 82V30,
or try a keyword search, such as Other Telecom ICs
