AD1851RZ - Analog Devices

Description: AD1851RZ, Audio DAC 16bit-, 12.5Msps ±1%FSR Serial, 16-Pin SOIC W

Download AD1851RZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

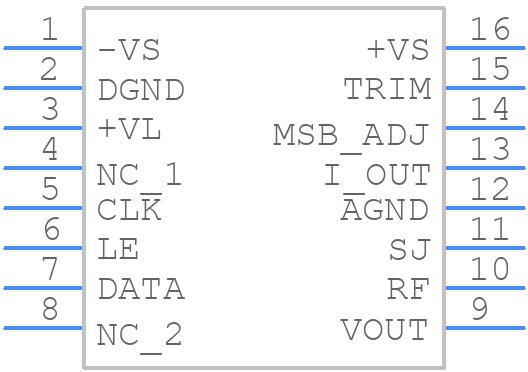

AD1851RZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
AD1851RZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-16 (SOIC) Wide-3
click to zoom
3D Models
AD1851RZ - Analog Devices - 3D model - Small Outline Packages - R-16 (SOIC) Wide-3
click to zoom

AD1851RZ Details

  • Manufacturer Part Number:

    AD1851RZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    PLASTIC, SOIC-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RW-16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Output Voltage-Max:

    3.12 V

  • Analog Output Voltage-Min:

    -2.88 V

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT BINARY

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    10.3 mm

  • Moisture Sensitivity Level:

    1

  • Negative Supply Voltage-Nom:

    -5 V

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Settling Time-Nom (tstl):

    1.5 µs

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm

AD1851RZ Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (VCC) first, followed by the digital power supply (VDD). This ensures that the analog circuitry is powered up before the digital circuitry.
  • To optimize performance in a noisy environment, use a low-pass filter on the analog input, use a ground plane on the PCB, and keep the analog and digital grounds separate. Additionally, use shielding and decoupling capacitors to reduce electromagnetic interference (EMI).
  • The AD1851RZ can support clock frequencies up to 50 MHz. However, the maximum clock frequency may vary depending on the specific application and system requirements.
  • To configure the AD1851RZ for differential operation, connect the positive input to VIN+ and the negative input to VIN-. For pseudo-differential operation, connect the positive input to VIN+ and the negative input to a fixed voltage reference (e.g., VREF).
  • To minimize noise and ensure optimal performance, keep the analog and digital signal traces separate, use a star-grounding configuration, and avoid running digital signal traces near the analog input pins. Additionally, use a solid ground plane and decoupling capacitors to reduce noise and EMI.
