Texas Instruments provides a recommended layout and routing guide in their application note SLAA382, which includes guidelines for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
To optimize clock jitter performance, ensure that the clock input is clean and stable, use a high-quality clock source, and follow the recommended clock routing and termination guidelines. Additionally, consider using a clock jitter attenuator or a phase-locked loop (PLL) to further reduce jitter.
The maximum cable length supported by the PCM56U/1K depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 inches) to minimize signal degradation and ensure reliable operation.
To troubleshoot issues with the PCM56U/1K, start by reviewing the datasheet and application notes to ensure that the device is properly configured and used within its recommended operating conditions. Use oscilloscopes and logic analyzers to debug the digital and analog signals, and consult Texas Instruments' technical support resources and forums for additional guidance.
The PCM56U/1K is a standard PCM codec that can be used with a variety of audio interfaces and codecs. However, compatibility may depend on the specific application and the requirements of the system. Consult the datasheet and application notes for more information on compatibility and integration with other devices.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM56U/1K Overview

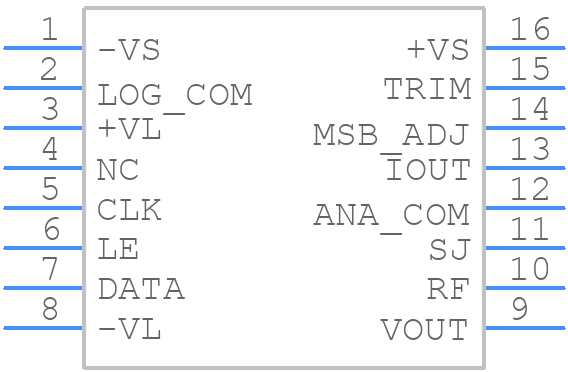

Use the download button to access the PCM56U/1K schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
