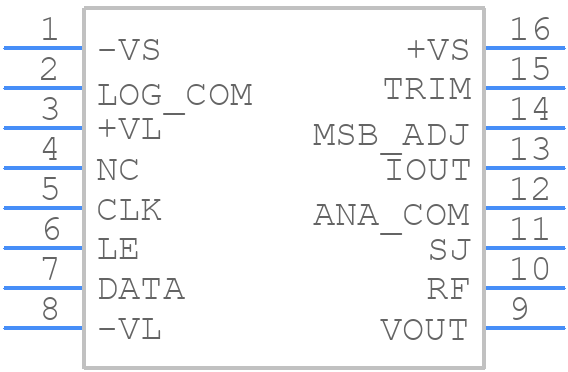

PCM56U/1KG4 - Texas Instruments

PCM56U/1KG4 Details

• Manufacturer Part Number:

  PCM56U/1KG4

• Brand Name:

  Texas Instruments

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SOIC

• Package Description:

  SOIC-16

• Pin Count:

  16

• Country Of Origin:

  Taiwan

• HTS Code:

  8542.39.00.40

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Output Voltage-Max:

  3 V

• Analog Output Voltage-Min:

  -3 V

• Converter Type:

  D/A CONVERTER

• Input Bit Code:

  2'S COMPLEMENT BINARY

• Input Format:

  SERIAL

• JESD-30 Code:

  R-PDSO-G16

• JESD-609 Code:

  e4

• Length:

  10.3 mm

• Moisture Sensitivity Level:

  3

• Negative Supply Voltage-Nom:

  -5 V

• Number of Bits:

  16

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.65 mm

• Settling Time-Nom (tstl):

  1.5 µs

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  1.27 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.5 mm
