The recommended layout and routing for the PCM56U involves keeping the analog and digital grounds separate, using a star-grounding configuration, and minimizing the length of the analog signal traces. It's also important to keep the clock and data lines away from the analog signal lines to minimize noise coupling.
To optimize the performance of the PCM56U in a noisy environment, use a low-pass filter on the analog input, use a shielded cable for the analog input, and consider using a common-mode filter on the analog input. Additionally, ensure that the power supply is well-regulated and decoupled, and consider using a ferrite bead on the power supply lines.
The maximum clock frequency that can be used with the PCM56U is 12.288 MHz, which is the maximum frequency supported by the device. However, the actual clock frequency used may be limited by the specific application and the quality of the clock signal.
To troubleshoot issues with the PCM56U, start by checking the power supply voltage and ensuring that it is within the recommended range. Then, check the clock signal and ensure that it is stable and within the recommended frequency range. Next, check the analog input signal and ensure that it is within the recommended range. Finally, check the digital output data and ensure that it is correct and stable.
Yes, the PCM56U can be used in a multi-channel application. The device has a serial interface that allows multiple devices to be connected in a daisy-chain configuration, allowing for multiple channels to be supported. However, the specific implementation details will depend on the specific application and requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
PCM56U Overview

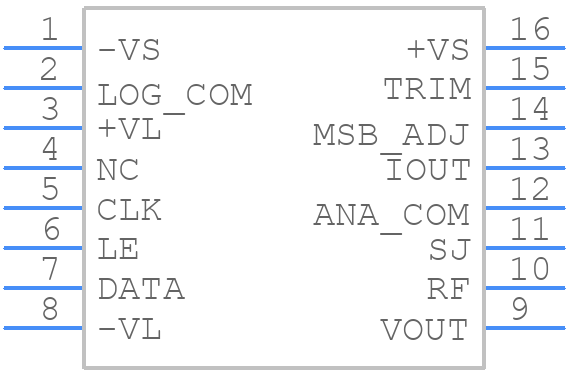

Use the download button to access the PCM56U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like PCM56,
or try a keyword search, such as Digital to Analog Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
