The recommended input voltage range for the ADC081000CIYB/NOPB is 0V to VREF (typically 2.5V or 5V), with a maximum input voltage of VCC + 0.3V to prevent damage to the device.
To ensure accurate conversions, ensure that the input signal is within the recommended voltage range, the clock frequency is within the specified range, and the device is properly powered and grounded. Additionally, consider using a low-pass filter to remove noise and aliasing effects.
Clock jitter can affect the ADC's performance by introducing noise and reducing the effective resolution. To minimize the effect of clock jitter, use a high-quality clock source with low jitter, and consider using a clock jitter attenuator or a phase-locked loop (PLL) to reduce clock jitter.
Metastability issues can occur when the input signal is close to the threshold voltage. To handle metastability issues, consider using a Schmitt trigger or a hysteresis circuit to improve the input signal's noise immunity, and ensure that the input signal is properly filtered and conditioned.
To ensure optimal performance, follow good layout and routing practices, such as keeping analog and digital signals separate, using a solid ground plane, and minimizing trace lengths and impedance mismatches. Additionally, consider using a dedicated analog power supply and a low-ESR capacitor for power decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC081000CIYB/NOPB Overview

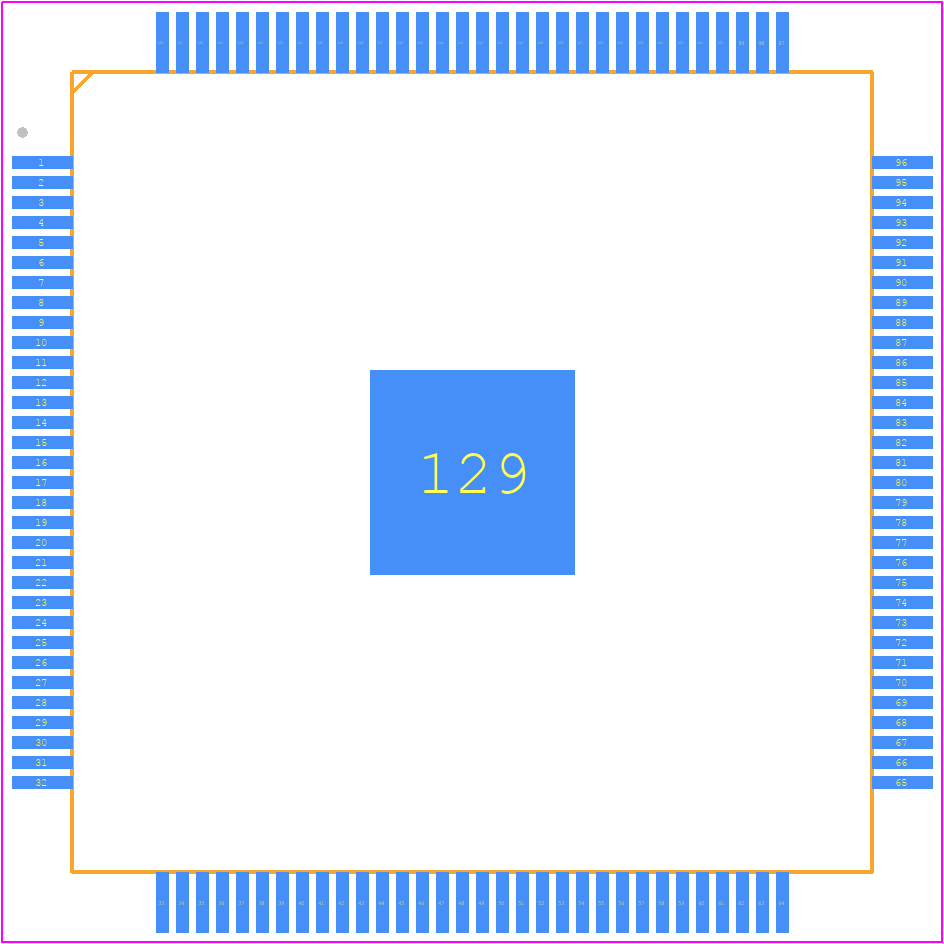

Use the download button to access the ADC081000CIYB/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC08,
or try a keyword search, such as Analog to Digital Converters
