ADC081000CIYB - Texas Instruments

Description: 8-Bit, 1 GSPS A/D,ADC081000CIYB

Download ADC081000CIYB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADC081000CIYB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

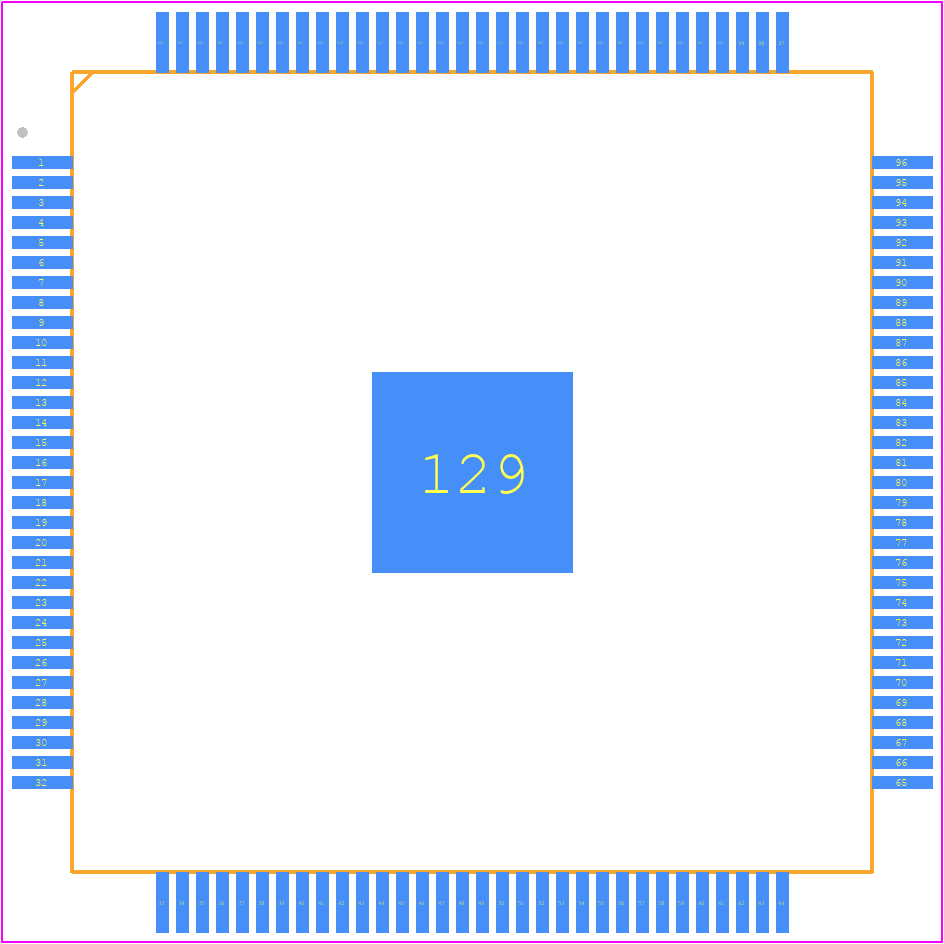

ADC081000CIYB - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - NNB0128A_2020
click to zoom
3D Models
ADC081000CIYB - Texas Instruments - 3D model - Quad Flat Packages - NNB0128A_2020
click to zoom

ADC081000CIYB Details

  • Manufacturer Part Number:

    ADC081000CIYB

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    MS-026BFB, LQFP-128

  • Pin Count:

    128

  • ECCN Code:

    3A991.c.1

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    1.3 V

  • Analog Input Voltage-Min:

    1.2 V

  • Conversion Time-Max:

    0.001 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQFP-G128

  • Length:

    20 mm

  • Linearity Error-Max (EL):

    0.3516%

  • Number of Analog In Channels:

    1

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    128

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, OFFSET BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Equivalence Code:

    QFP128,.79SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    1000 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    792 mA

  • Supply Voltage-Nom:

    1.9 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    20 mm

ADC081000CIYB Frequently Asked Questions (FAQs)

  • The recommended input impedance for the ADC081000CIYB is 1 kΩ to 10 kΩ. This ensures proper signal attenuation and prevents signal reflections.
  • The ADC081000CIYB requires a clock signal with a frequency range of 1 MHz to 20 MHz. The clock signal should be a clean, low-jitter signal with a duty cycle of 40% to 60%. It's recommended to use a dedicated clock source or a clock buffer to ensure a stable clock signal.
  • The ADC081000CIYB's performance is affected by temperature. The device's accuracy and linearity may degrade at high temperatures (above 85°C). It's recommended to operate the device within the specified temperature range (-40°C to 125°C) and to consider temperature compensation or calibration for high-accuracy applications.
  • Proper power supply decoupling is crucial for the ADC081000CIYB's performance. It's recommended to use a 0.1 μF to 1 μF ceramic capacitor between the VCC and GND pins, and to place the capacitor as close as possible to the device. Additionally, a 10 μF to 100 μF bulk capacitor can be used to filter out low-frequency noise.
  • The recommended layout and routing for the ADC081000CIYB involves keeping the analog and digital signals separate, using a star-ground configuration, and minimizing signal traces near the device. It's also recommended to use a solid ground plane and to avoid vias under the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC081000CIYB Overview

Use the download button to access the ADC081000CIYB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC08, or try a keyword search, such as Analog to Digital Converters
