ADC0816CCJ - Texas Instruments

ADC0816CCJ Details

• Manufacturer Part Number:

  ADC0816CCJ

• Rohs Code:

  No

• Part Life Cycle Code:

  Obsolete

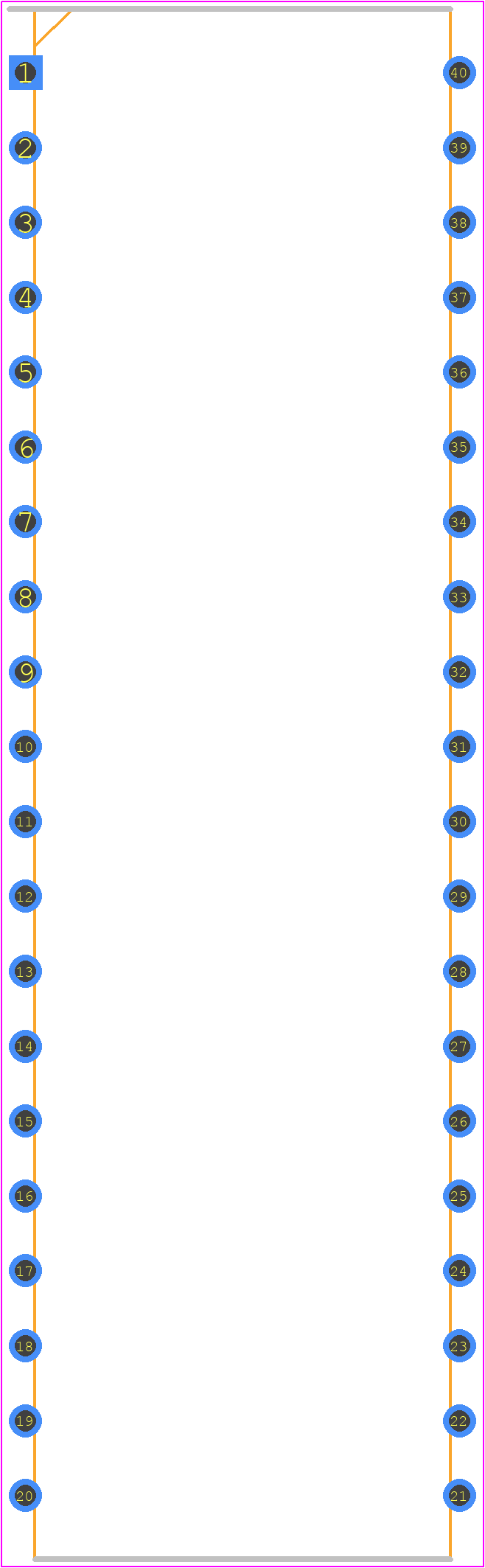

• Package Description:

  DIP, DIP40,.6

• Reach Compliance Code:

  Unknown

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  5.1 V

• Analog Input Voltage-Min:

  -0.1 V

• Conversion Time-Max:

  116 µs

• Converter Type:

  ADC, SUCCESSIVE APPROXIMATION

• JESD-30 Code:

  R-GDIP-T40

• JESD-609 Code:

  e0

• Length:

  52.83 mm

• Linearity Error-Max (EL):

  0.4883%

• Number of Analog In Channels:

  16

• Number of Bits:

  8

• Number of Functions:

  1

• Number of Terminals:

  40

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  BINARY

• Output Format:

  PARALLEL, 8 BITS

• Package Body Material:

  CERAMIC, GLASS-SEALED

• Package Code:

  DIP

• Package Equivalence Code:

  DIP40,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Sample Rate:

  0.01 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  5.715 mm

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  TIN LEAD

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  15.24 mm
