Texas Instruments provides a layout and routing guide in the application note SLAA523, which provides detailed recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
The ADC10064CIWM/NOPB has a built-in calibration feature that can be used to calibrate the device. The calibration process involves writing specific values to the device's registers to adjust the offset and gain. Texas Instruments provides a calibration guide in the application note SLAA524, which provides step-by-step instructions for calibrating the device.
The maximum sampling rate of the ADC10064CIWM/NOPB is 1 MSPS (million samples per second). However, the actual sampling rate may be limited by the system's clock frequency, the ADC's conversion time, and the interface protocol used.
Yes, the ADC10064CIWM/NOPB can be used in a multi-channel application. The device has a built-in sequencer that allows it to sequence through multiple channels. The sequencer can be programmed to sequence through up to 16 channels, and the device can be used in a variety of multi-channel applications such as data acquisition systems, industrial control systems, and medical devices.
The power consumption of the ADC10064CIWM/NOPB depends on the operating mode and the clock frequency. In normal operating mode, the device consumes around 35 mW of power. In power-down mode, the device consumes around 1.5 mW of power. The power consumption can be further reduced by using the device's low-power modes and adjusting the clock frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC10064CIWM/NOPB Overview

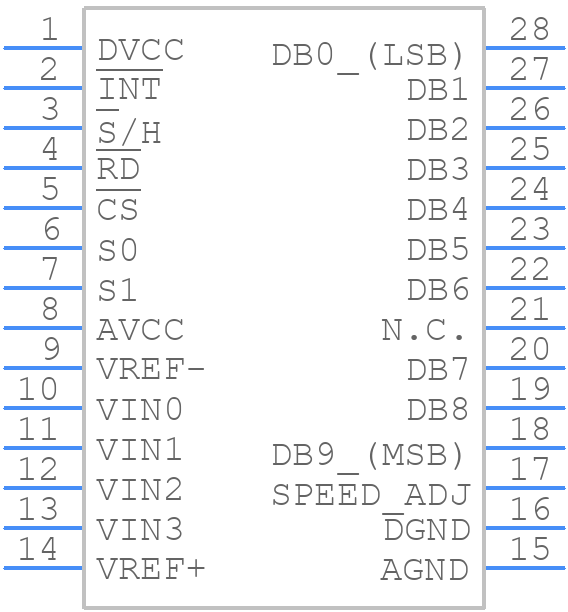

Use the download button to access the ADC10064CIWM/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10,
or try a keyword search, such as Analog to Digital Converters
