- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADC10064CIWM
- Part Number ADC10064CIWM
- Manufacturer Texas Instruments
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1030X265-28N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADC10064CIWM Details
-
Manufacturer Part Number:
ADC10064CIWM
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog Input Voltage-Max:
5.55 V
-
Analog Input Voltage-Min:
-0.05 V
ADC10064CIWM Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter or a ferrite bead to filter out high-frequency noise.
-
To optimize the ADC10064CIWM for low-power applications, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not converting. Also, consider using the ADC's built-in low-power modes, such as the 'Nap' mode or 'Sleep' mode.
-
The ADC10064CIWM has an internal calibration circuit that can be used to calibrate the ADC. The recommended calibration procedure involves applying a known input voltage, taking multiple conversions, and calculating the gain and offset errors. The calibration data can then be stored in an external EEPROM or flash memory.
-
To handle metastability issues, use a synchronizer circuit or a metastable-resistant flip-flop to resynchronize the ADC's output data. Also, consider using a clock domain crossing (CDC) circuit to synchronize the clock signals between different clock domains.
-
The recommended method for driving the ADC10064CIWM's analog input is to use a low-impedance source, such as an op-amp or a dedicated analog driver. The input signal should be filtered to remove high-frequency noise, and the input impedance should be matched to the ADC's input impedance.
Trust Checks
System Verified
ADC10064CIWM Overview

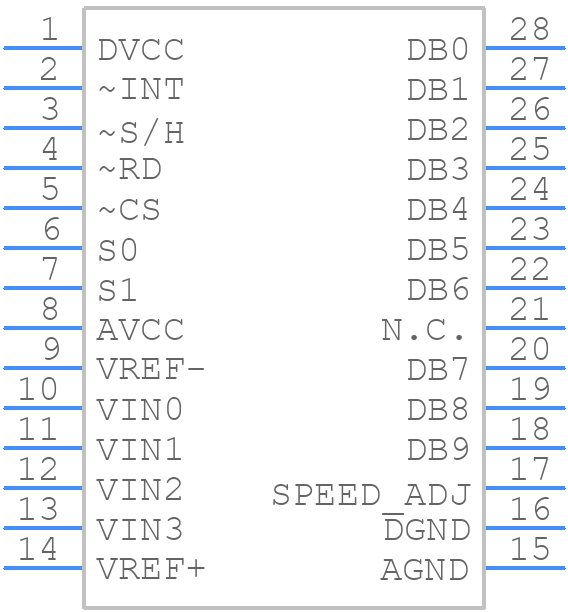

Use the download button to access the ADC10064CIWM schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10,
or try a keyword search, such as Analog to Digital Converters
