ADC10065CIMT/NOPB - Texas Instruments

Description: 10-Bit, 65-MSPS Analog-to-Digital Converter (ADC)

Download ADC10065CIMT/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

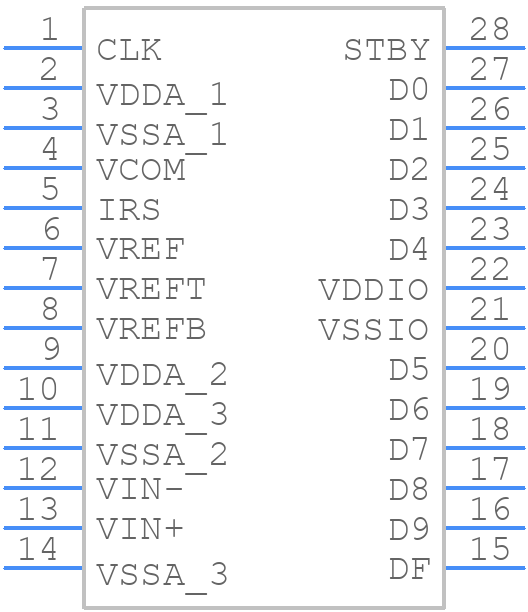

ADC10065CIMT/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC10065CIMT/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW(R-PDSO-G28)
click to zoom
3D Models
ADC10065CIMT/NOPB - Texas Instruments - 3D model - Small Outline Packages - PW(R-PDSO-G28)
click to zoom

ADC10065CIMT/NOPB Details

  • Manufacturer Part Number:

    ADC10065CIMT/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Package Description:

    TSSOP-28

  • Pin Count:

    28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Conversion Time-Max:

    0.0153846 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    9.7 mm

  • Linearity Error-Max (EL):

    0.1074%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP28,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    65 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    29 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

ADC10065CIMT/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which provides detailed recommendations for PCB layout, component placement, and routing to minimize noise and ensure optimal performance.
  • The ADC10065CIMT/NOPB has a built-in calibration feature that can be used to calibrate the device. The calibration process involves writing specific values to the device's registers to adjust the gain and offset. Texas Instruments provides a calibration guide in the application note SLAA524, which provides step-by-step instructions for calibrating the device.
  • The maximum sampling rate of the ADC10065CIMT/NOPB is 65 MSPS. The power consumption of the device increases with the sampling rate, and Texas Instruments provides a power consumption calculator in the datasheet to estimate the power consumption based on the sampling rate and other parameters.
  • The ADC10065CIMT/NOPB has a parallel CMOS interface that can be interfaced with a microcontroller or FPGA. Texas Instruments recommends using a parallel interface protocol such as SPI or QSPI, and provides example code and interface diagrams in the datasheet and application notes.
  • The ADC10065CIMT/NOPB has a maximum junction temperature of 125°C, and the device's performance and reliability can be affected by high temperatures. Texas Instruments recommends using thermal management techniques such as heat sinks, thermal vias, and thermal interface materials to keep the device temperature within the recommended range.
