Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. The ADC inputs should be routed close to the ADC pins, and the clock signal should be routed away from the analog signals.
Optimization depends on the specific application. However, in general, it's recommended to use the ADC's internal reference voltage, adjust the clock frequency and phase to minimize jitter, and use the ADC's built-in calibration features to improve accuracy.
The maximum sampling rate of the ADC10065CIMTX/NOPB is 65 MSPS. However, the actual achievable sampling rate may be limited by the system's clock frequency, the ADC's internal clock jitter, and the quality of the analog input signals.
The ADC10065CIMTX/NOPB outputs 14-bit or 15-bit digital data, depending on the mode. The recommended data processing flow involves synchronizing the data with the clock signal, applying digital filtering and gain correction, and then processing the data according to the application's requirements.
The ADC10065CIMTX/NOPB requires a single 3.3V power supply. To ensure reliable operation, it's recommended to use a low-noise power supply, decouple the power pins with capacitors, and ensure that the power supply can provide the required current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC10065CIMTX/NOPB Overview

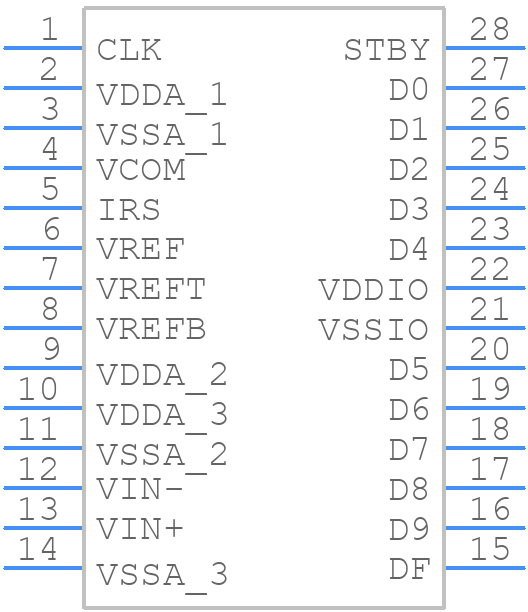

Use the download button to access the ADC10065CIMTX/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10,
or try a keyword search, such as Analog to Digital Converters
