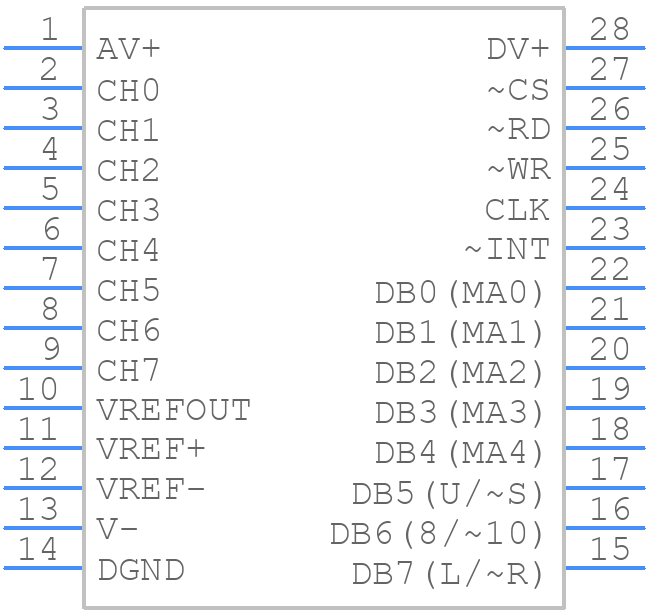

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADC10158CIWM
- Part Number ADC10158CIWM
- Manufacturer Texas Instruments
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - SOIC127P1032X265-28N
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADC10158CIWM Details
-
Manufacturer Part Number:
ADC10158CIWM
-
Brand Name:
Texas Instruments
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOP-28
-
Pin Count:
28
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Analog Input Voltage-Max:
5.05 V
-
Analog Input Voltage-Min:
-5.05 V
ADC10158CIWM Frequently Asked Questions (FAQs)
-
Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter capacitor between the analog input and ground to reduce noise.
-
To optimize the ADC10158CIWM for low-power applications, use the lowest possible clock frequency, disable the internal reference voltage, and use the power-down mode when not converting. Additionally, consider using the ADC's built-in low-power modes, such as the 'Nap' mode, to reduce power consumption.
-
The recommended input impedance for the ADC10158CIWM is 1 kΩ or less. Higher input impedance can lead to reduced conversion accuracy due to the ADC's input capacitance and resistance. To minimize errors, use a buffer amplifier or an impedance-matching network to ensure a low input impedance.
-
To handle overvoltage conditions, use external voltage-limiting circuits, such as clamping diodes or voltage dividers, to prevent damage to the ADC. Additionally, consider using the ADC's built-in overvoltage protection feature, which can detect and respond to overvoltage conditions.
-
The recommended calibration procedure for the ADC10158CIWM involves a two-point calibration using a known voltage reference. Apply a known voltage to the ADC's input, and then use the ADC's calibration registers to adjust the offset and gain to achieve accurate conversions.
Trust Checks
System Verified
ADC10158CIWM Overview
Use the download button to access the ADC10158CIWM schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC10,
or try a keyword search, such as Analog to Digital Converters
