A low-jitter, high-frequency clock source is recommended, such as a crystal oscillator or a high-quality clock generator. The clock source should be able to provide a stable clock signal with minimal phase noise and jitter.
To optimize the ADC's performance, consider factors such as the input signal frequency, amplitude, and impedance, as well as the desired SNR and ENOB. Adjust the ADC's settings, such as the clock frequency, gain, and sampling rate, to achieve the best possible performance for your specific application.
The maximum input voltage range for the ADC11C125 is ±1.5V, but it can be adjusted using the internal gain stage. However, it's essential to ensure that the input signal does not exceed the maximum rating to avoid damage to the device.
Metastability issues can occur when the ADC's output is not stable due to asynchronous clock domains. To handle metastability issues, use synchronization techniques such as clock domain crossing or metastable-hardened flip-flops to ensure that the ADC's output is properly synchronized with the system clock.
The power consumption of the ADC11C125 depends on the operating frequency, voltage supply, and other factors. To reduce power consumption, consider using a lower operating frequency, reducing the voltage supply, or using power-down modes when the ADC is not in use.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC11C125CISQ/NOPB Overview

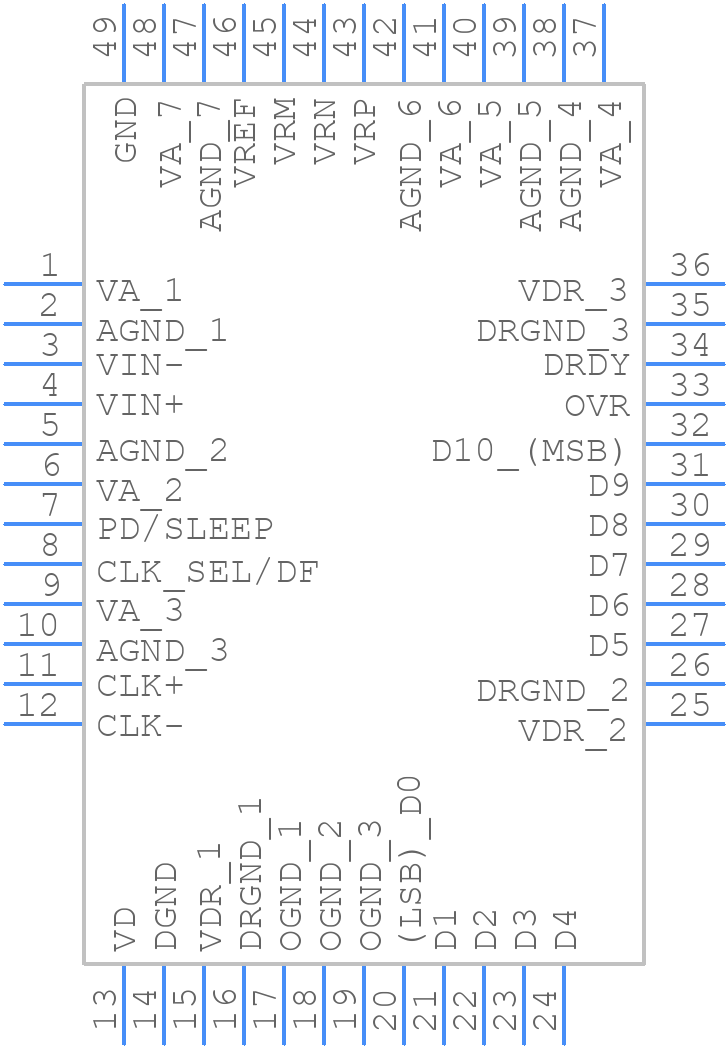

Use the download button to access the ADC11C125CISQ/NOPB schematic symbol, PCB footprint, and 3D model.
