ADC121S655CIMM/NOPB - Texas Instruments

Description: 12-Bit, 200 kSPS to 500 kSPS, Differential Input, Micro Power A/D Converter

Download ADC121S655CIMM/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

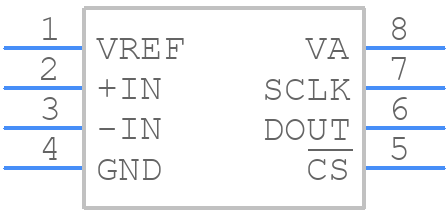

Symbol
ADC121S655CIMM/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC121S655CIMM/NOPB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK (S-PDSO-G8)-1
click to zoom
3D Models
ADC121S655CIMM/NOPB - Texas Instruments - 3D model - Small Outline Packages - DGK (S-PDSO-G8)-1
click to zoom

ADC121S655CIMM/NOPB Details

  • Manufacturer Part Number:

    ADC121S655CIMM/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Analog Input Voltage-Max:

    2.5 V

  • Analog Input Voltage-Min:

    4.5 V

  • Conversion Time-Max:

    2000 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0232%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.5 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.09 mm

  • Supply Current-Max:

    2.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADC121S655CIMM/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the application note SLAA523, which recommends a symmetrical layout, minimal trace length, and proper decoupling to reduce noise and ensure accurate conversions.
  • The ADC121S655CIMM/NOPB has an internal calibration feature that can be enabled through the CAL pin. Additionally, external calibration can be performed using an external voltage reference and adjusting the offset and gain registers. Refer to the datasheet and application notes for detailed calibration procedures.
  • The maximum sampling rate of the ADC121S655CIMM/NOPB is 1 MSPS. However, the power consumption increases with the sampling rate. At 1 MSPS, the typical power consumption is around 12 mW. Refer to the datasheet for power consumption vs. sampling rate curves.
  • Yes, the ADC121S655CIMM/NOPB can be used in a multi-channel application. It has a built-in multiplexer that allows up to 4 channels to be connected. The channels can be selected using the CH[1:0] pins, and the conversion sequence can be programmed using the SEQ[1:0] pins. Refer to the datasheet for detailed configuration and programming information.
  • The recommended voltage reference for the ADC121S655CIMM/NOPB is an external voltage reference with a low noise and high stability, such as the REF3020 or REF3030 from Texas Instruments. The voltage reference affects the accuracy of the ADC, and a high-quality reference is essential to achieve the specified accuracy of ±1 LSB.
