A good PCB layout for the ADC12D1000RFIUT/NOPB involves separating analog and digital grounds, using a solid ground plane, and keeping analog and digital signal traces separate. Additionally, it's recommended to use a low-ESR capacitor for power decoupling and to place it close to the ADC's power pins.
To optimize the ADC12D1000RFIUT/NOPB's performance for high-frequency signals, use a high-quality analog input filter to remove noise and aliasing, and ensure the input signal is properly terminated. Also, consider using a track-and-hold amplifier to improve the ADC's dynamic performance.
A high-quality, low-jitter clock source is recommended for the ADC12D1000RFIUT/NOPB. Consider using a crystal oscillator or a high-quality clock generator. To minimize clock jitter, use a clock source with a low phase noise and a high-frequency clock signal, and ensure the clock signal is properly terminated and routed.
To ensure the ADC12D1000RFIUT/NOPB's digital output is properly synchronized with your system's clock domain, use a clock domain crossing (CDC) circuit or a synchronizer to synchronize the ADC's output clock with your system's clock. This ensures that the ADC's output data is properly aligned with your system's clock.
A recommended power supply decoupling scheme for the ADC12D1000RFIUT/NOPB involves using a combination of ceramic and electrolytic capacitors to filter out noise and ripple. Place a 0.1uF ceramic capacitor close to the ADC's power pins, and use a 10uF electrolytic capacitor in parallel to filter out low-frequency noise.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12D1000RFIUT/NOPB Overview

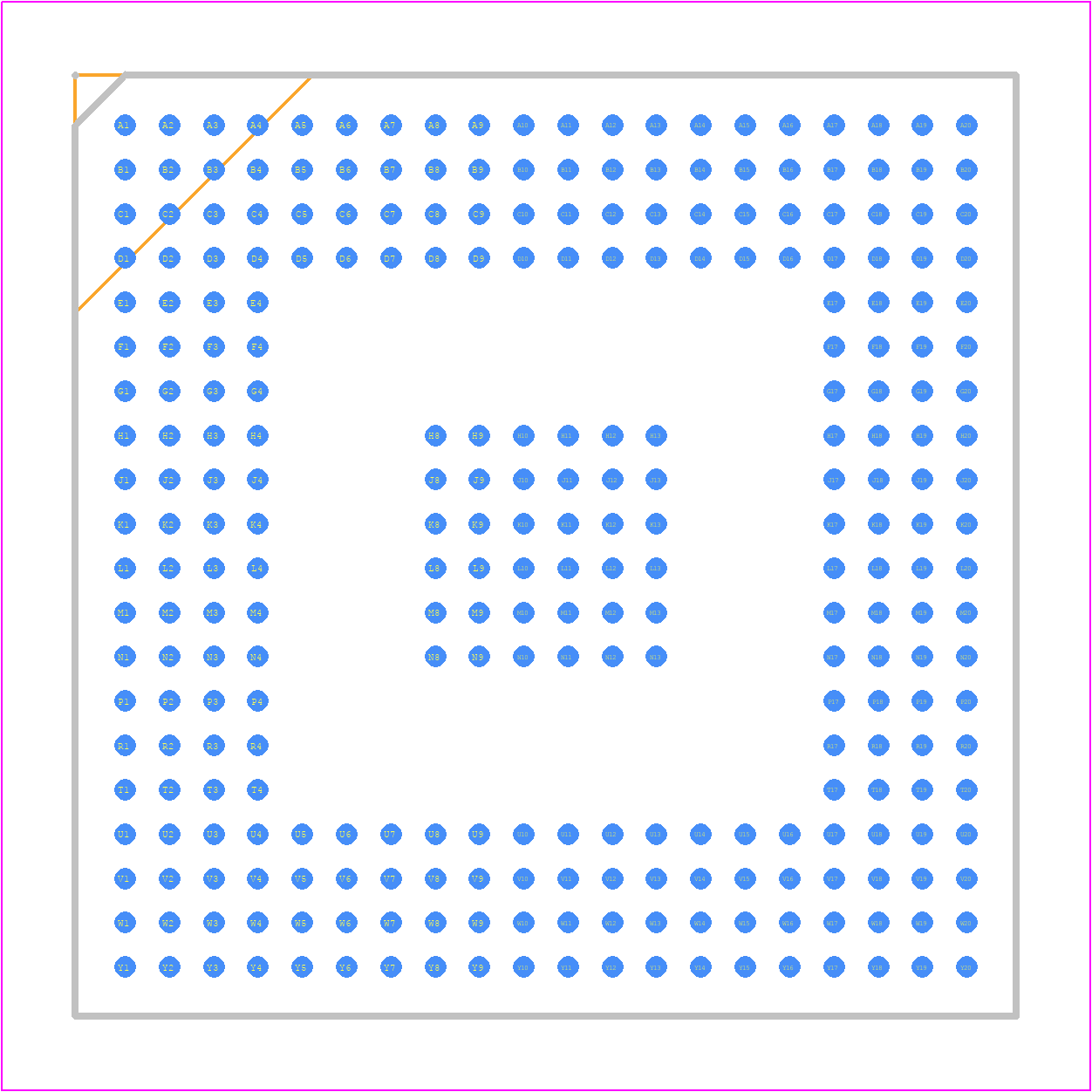

Use the download button to access the ADC12D1000RFIUT/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12,
or try a keyword search, such as Analog to Digital Converters
