ADC12EU050CIPLQ - Texas Instruments

ADC12EU050CIPLQ Details

• Manufacturer Part Number:

  ADC12EU050CIPLQ

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFN

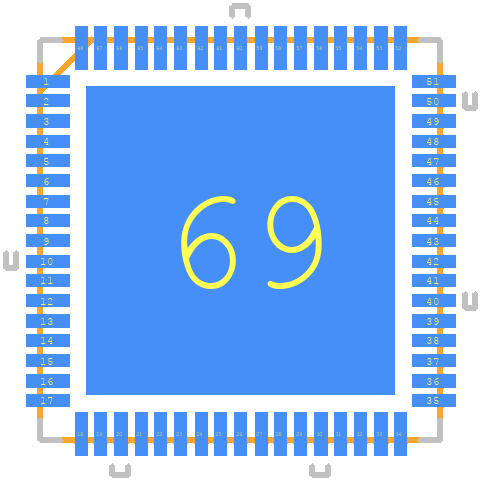

• Package Description:

  10 X 10 MM, 1 MM HEIGHT, 0.50 MM PITCH, LLP-68

• Pin Count:

  68

• HTS Code:

  8542.39.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Analog Input Voltage-Max:

  2.1 V

• Analog Input Voltage-Min:

  -2.1 V

• Conversion Time-Max:

  0.02 µs

• Converter Type:

  ADC, DELTA-SIGMA

• JESD-30 Code:

  S-XQCC-N68

• Length:

  10 mm

• Linearity Error-Max (EL):

  0.0732%

• Number of Analog In Channels:

  8

• Number of Bits:

  12

• Number of Functions:

  1

• Number of Terminals:

  68

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Bit Code:

  OFFSET BINARY, 2'S COMPLEMENT BINARY

• Output Format:

  SERIAL

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC68,.4SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Sample Rate:

  50 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  1 mm

• Supply Voltage-Nom:

  1.2 V

• Surface Mount:

  YES

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  10 mm
