The recommended clock source is a low-jitter, high-frequency clock (e.g., 640 MHz) to ensure optimal performance. A clock source with a jitter of less than 100 ps is recommended.
To optimize performance, consider factors such as input signal frequency, amplitude, and impedance, as well as the ADC's clock frequency, sampling rate, and gain settings. Consult the datasheet and application notes for guidance.
The ADC12J1600NKET can handle input signal amplitudes up to 2.5 Vpp differential (5 Vpp single-ended) without exceeding the maximum rating. However, the optimal input range is typically between 1.5 Vpp and 2.5 Vpp differential.
Metastability can occur when the ADC's output data is not stable due to internal clock domain crossings. To mitigate this, use a metastability filter or a synchronizer circuit to ensure data stability before processing or storing the output data.
To minimize noise and interference, keep analog and digital signals separate, use differential signaling, and maintain a consistent impedance throughout the signal path. Consult the datasheet and application notes for specific layout and routing guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC12J1600NKET Overview

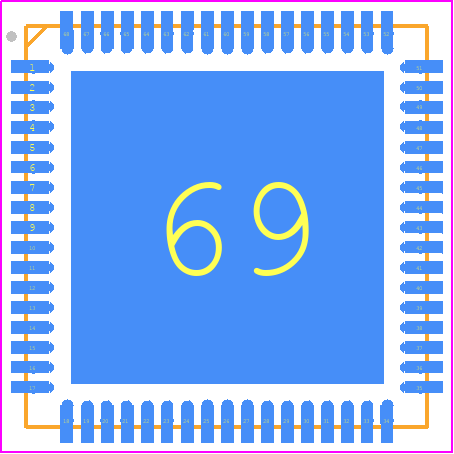

Use the download button to access the ADC12J1600NKET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC12,
or try a keyword search, such as Analog to Digital Converters
