Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct input range, gain, and sampling rate for your application. Also, ensure proper filtering and signal conditioning to reduce noise and distortion. Consult the datasheet and application notes for specific guidance.
The ADC31JB68RTA25 has a junction temperature range of -40°C to 125°C. Ensure reliable operation by providing adequate heat sinking, using a thermal pad or heat sink, and following proper PCB design and layout guidelines to minimize thermal resistance.
Interface the ADC with a microcontroller or FPGA using a compatible digital interface (e.g., SPI, I2C, or parallel). Ensure proper signal integrity, use a common clock domain, and follow the datasheet's digital interface timing requirements. Also, consider using a FIFO or buffer to handle data transfer and minimize data loss.
Follow proper PCB design and layout guidelines to minimize EMI and RFI. Use shielding, filtering, and grounding techniques to reduce emissions and susceptibility. Ensure that the ADC and surrounding components meet the relevant electromagnetic compatibility standards (e.g., CISPR, FCC, or CE).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC31JB68RTA25 Overview

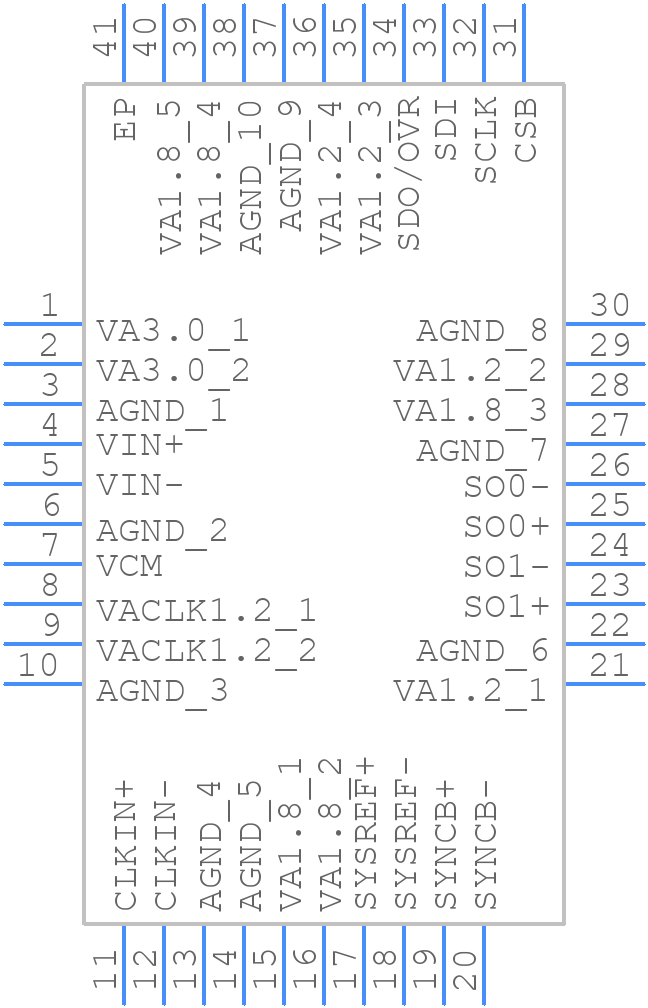

Use the download button to access the ADC31JB68RTA25 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC31,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
