Texas Instruments provides a layout and routing guide in the ADC3243 datasheet, which recommends keeping the analog and digital grounds separate, using a solid ground plane, and minimizing trace lengths and loops. Additionally, it's essential to follow good PCB design practices, such as using a star-ground configuration and avoiding vias under the device.
The internal reference voltage can be configured using the REFSEL pin. For a 2.5V reference, connect REFSEL to VCC. For a 1.2V reference, connect REFSEL to GND. The internal buffer can be enabled or disabled using the REFBUF pin. Connect REFBUF to VCC to enable the buffer or GND to disable it. Refer to the datasheet for specific configuration details.
The ADC3243IRGZT can achieve a maximum sampling rate of 65 MSPS. However, the power consumption increases with the sampling rate. At 65 MSPS, the device consumes around 350 mW. To reduce power consumption, consider reducing the sampling rate or using the device's power-down modes.
The ADC3243IRGZT has a pipeline latency of 6 clock cycles. This means that the conversion result is available 6 clock cycles after the start of the conversion. To handle this latency, ensure that your system design accounts for the pipeline delay and that you're not trying to access the conversion result too soon. You can also use the device's FIFO mode to buffer the conversion results and reduce the impact of latency.
The ADC3243IRGZT has a junction temperature range of -40°C to 125°C. To ensure reliable operation, ensure that the device is operated within this range. Use thermal design techniques such as heat sinking, thermal vias, and thermal pads to dissipate heat. Additionally, consider using a thermal interface material to improve heat transfer between the device and the PCB.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC3243IRGZT Overview

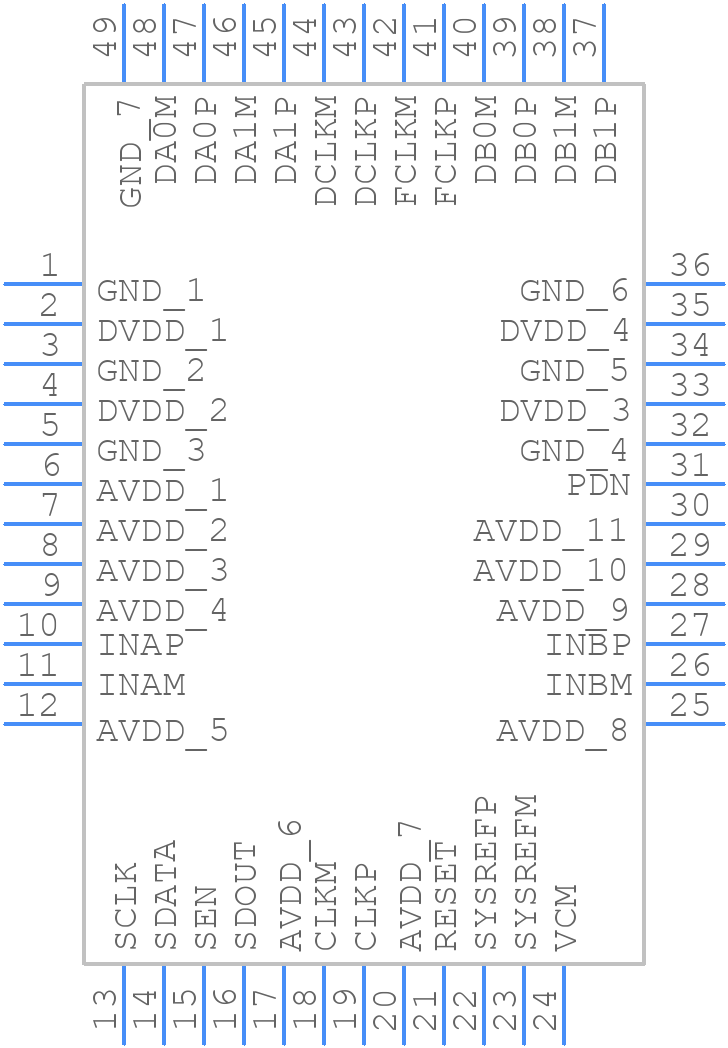

Use the download button to access the ADC3243IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
