ADC32J44IRGZR - Texas Instruments

Description: Bit Analog to Digital Converter Input 48-VQFN (7x7)

Download ADC32J44IRGZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

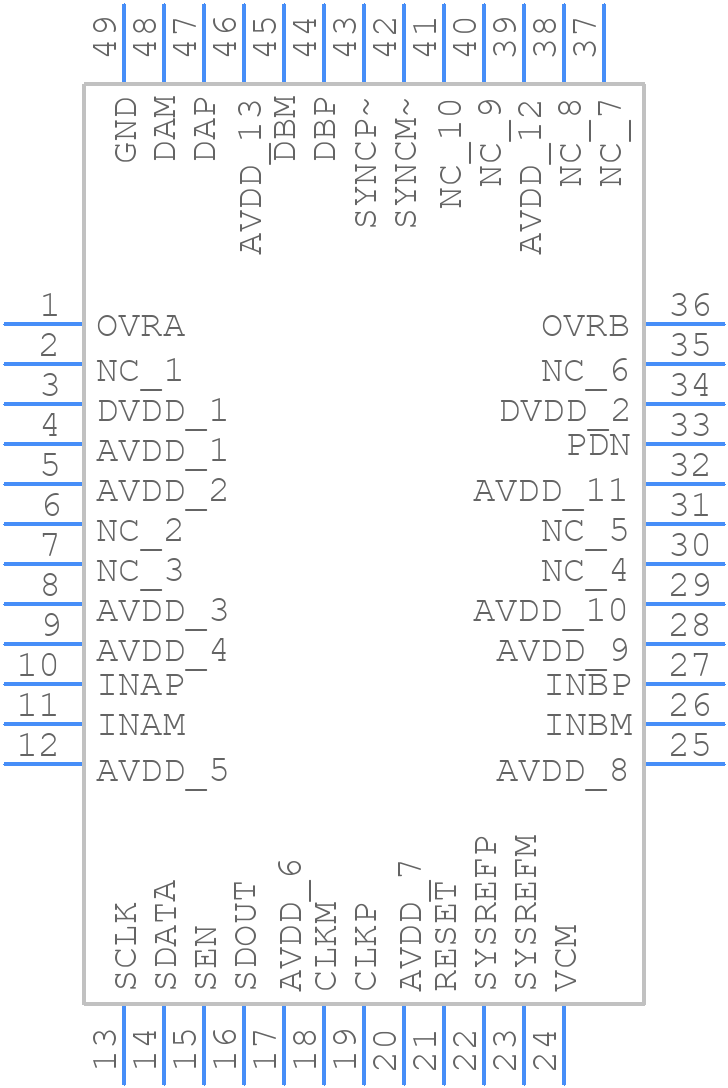

ADC32J44IRGZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC32J44IRGZR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048D
click to zoom
3D Models
ADC32J44IRGZR - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048D
click to zoom

ADC32J44IRGZR Details

  • Manufacturer Part Number:

    ADC32J44IRGZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    HVQCCN-48

  • Pin Count:

    48

  • ECCN Code:

    3A991.C.3

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 2

  • Analog Input Voltage-Max:

    2 V

  • Analog Input Voltage-Min:

    -2 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.00916%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    14

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    OFFSET BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    125 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    292 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

ADC32J44IRGZR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADC32J44IRGZR Evaluation Module User's Guide (SLAU445). It recommends using a 4-layer PCB with a solid ground plane, placing the ADC close to the analog signal sources, and using shielded cables for analog inputs.
  • The ADC32J44IRGZR has a built-in calibration feature that can be accessed through the SPI interface. The calibration process involves writing specific registers to configure the ADC for calibration, and then reading back the calibration results. The calibration procedure is detailed in the ADC32J44IRGZR datasheet (SBAS635).
  • The maximum sampling rate of the ADC32J44IRGZR is 1.5 MSPS. The sampling rate is affected by the input frequency, and the ADC can achieve the maximum sampling rate with input frequencies up to 1 MHz. For higher input frequencies, the sampling rate may need to be reduced to avoid aliasing and ensure accurate conversion.
  • The ADC32J44IRGZR outputs 32-bit digital data in two's complement format. The output data can be handled using a microcontroller or FPGA, and can be processed using digital signal processing techniques. The output data format is detailed in the ADC32J44IRGZR datasheet (SBAS635).
  • The power consumption of the ADC32J44IRGZR depends on the operating mode and sampling rate. In normal operation, the power consumption is typically around 35 mW. Power consumption can be minimized by using the ADC's power-down modes, reducing the sampling rate, and optimizing the system design to minimize power consumption.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC32J44IRGZR Overview

Use the download button to access the ADC32J44IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments
