Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep analog and digital signals separate. Use short, direct traces for analog signals, and avoid crossing digital signals over analog signals. Also, use a common mode filter and a ferrite bead to filter out high-frequency noise.
Optimize the ADC's performance by selecting the correct input range, gain, and sampling rate for your application. Use the ADC's built-in calibration features, such as offset and gain calibration, to improve accuracy. Additionally, consider using an external reference voltage and a low-noise power supply to minimize noise and drift.
The ADC32J44IRGZT has a maximum junction temperature of 150°C. Ensure reliable operation over temperature by providing adequate heat sinking, using a thermal pad or heat sink, and keeping the device away from heat sources. Also, consider using thermal simulation tools to model the thermal performance of your design.
Interface the ADC32J44IRGZT with a microcontroller or FPGA using a parallel or serial interface, such as SPI or I2C. Ensure proper synchronization by using the ADC's built-in synchronization signals, such as the data ready signal, and consider using a FIFO or buffer to handle data transfer.
Ensure electromagnetic compatibility by following proper PCB layout and routing guidelines, using shielding and filtering, and minimizing radiated emissions. Use a metal shield or enclosure to contain radiated emissions, and consider using EMI filters or common mode chokes to reduce emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC32J44IRGZT Overview

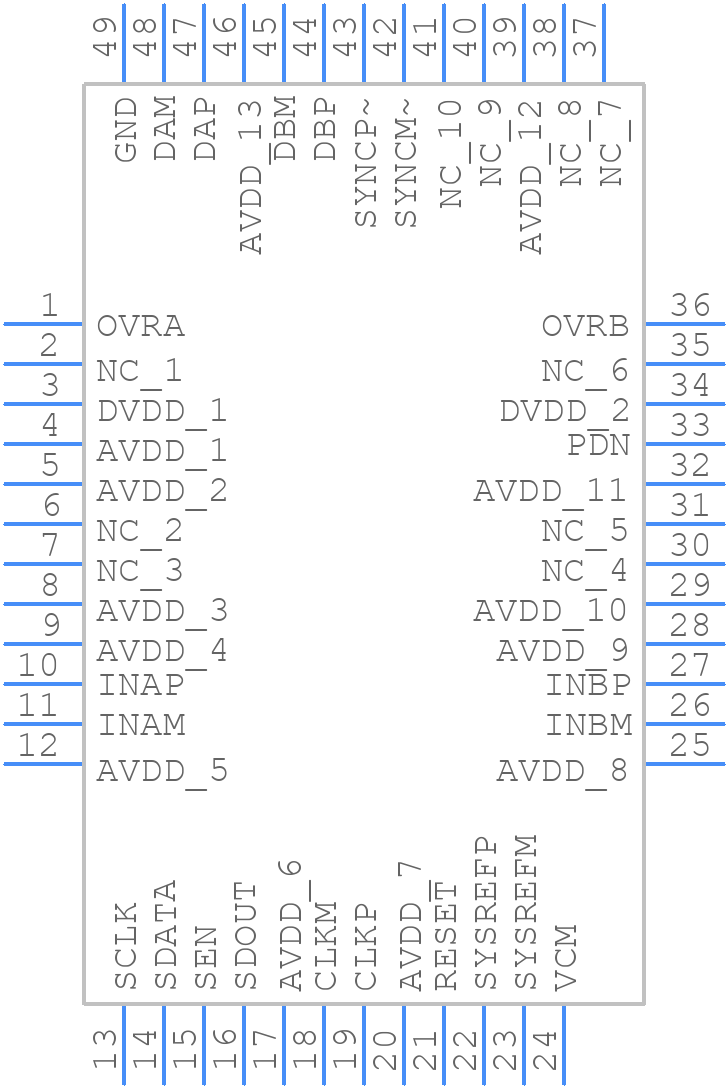

Use the download button to access the ADC32J44IRGZT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
