Texas Instruments provides a layout and routing guide in the ADC32J45IRGZR Evaluation Module User's Guide (SLAU445) that should be followed to achieve optimal performance. Additionally, it is recommended to keep the analog and digital signals separate, use a solid ground plane, and minimize the length of the analog signal traces.
The ADC32J45IRGZR has a built-in calibration feature that can be used to improve its accuracy. The calibration process involves writing specific values to the device's registers to adjust the offset and gain errors. The calibration procedure is described in the ADC32J45IRGZR datasheet (SBAS544) and the ADC32J45IRGZR Calibration Guide (SLAA644).
The maximum sampling rate of the ADC32J45IRGZR is 250 MSPS. However, the actual sampling rate that can be achieved depends on the clock frequency, the number of channels, and the operating mode. The power consumption of the ADC32J45IRGZR increases with the sampling rate, and it is recommended to use the lowest possible sampling rate that meets the system requirements to minimize power consumption.
The ADC32J45IRGZR has a JESD204B digital interface that can be used to interface with FPGAs or ASICs. The recommended digital interface protocols are JESD204B, DDR LVDS, and CMOS. The interface protocol selection depends on the specific system requirements and the capabilities of the FPGA or ASIC. Texas Instruments provides IBIS models and interface guides to help with the interface design.
The ADC32J45IRGZR has a maximum junction temperature of 125°C, and it is recommended to keep the device temperature below 100°C to ensure reliable operation. The device package has a thermal pad that should be connected to a solid ground plane to improve heat dissipation. Additionally, the device should be operated within the recommended power supply voltage and current limits to minimize thermal stress.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADC32J45IRGZR Overview

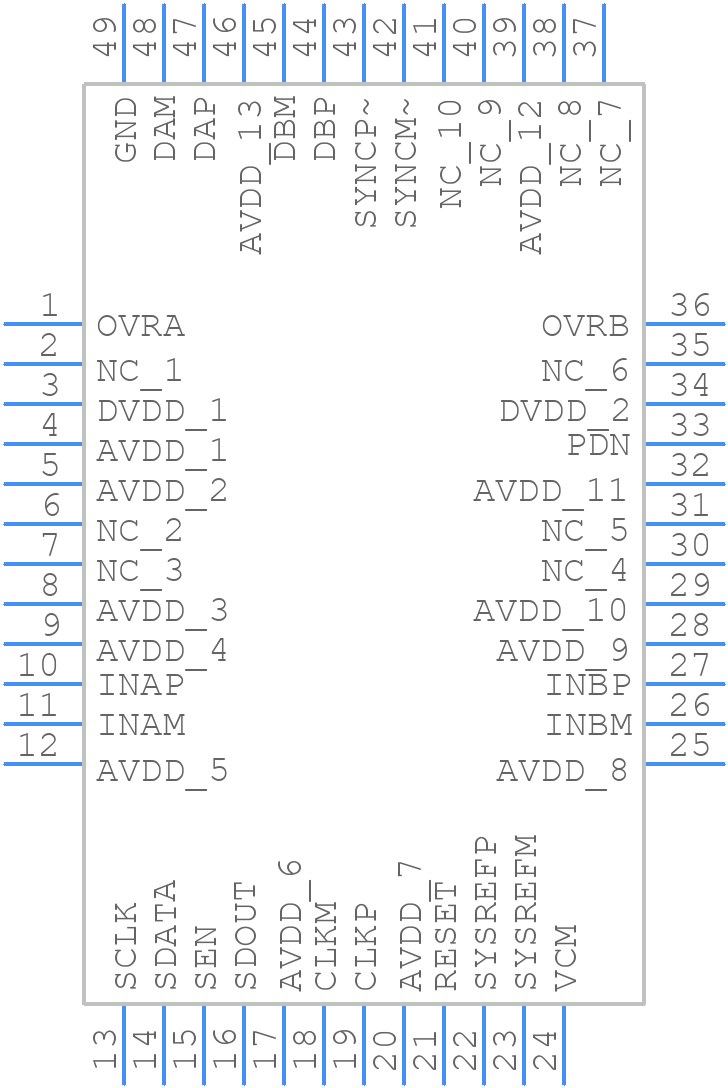

Use the download button to access the ADC32J45IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32,
or try a keyword search, such as Analog to Digital Converters
