ADC32RF83IRRHT - Texas Instruments

Description: PLASTIC QUAD FLATPACK - NO LEAD

Download ADC32RF83IRRHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADC32RF83IRRHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

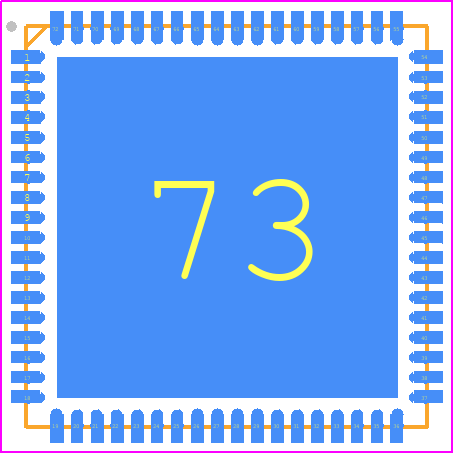

ADC32RF83IRRHT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RRH0072A_2022
click to zoom
3D Models
ADC32RF83IRRHT - Texas Instruments - 3D model - Quad Flat No-Lead - RRH0072A_2022
click to zoom

ADC32RF83IRRHT Details

  • Manufacturer Part Number:

    ADC32RF83IRRHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A991.B

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-08-12

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Data Rate:

    12500000 Mbps

  • JESD-30 Code:

    S-XQCC-N72

  • JESD-609 Code:

    e4

  • Length:

    10 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    72

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC72,.39SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    10 mm

ADC32RF83IRRHT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout guide in the ADC32RF83IRRHT Evaluation Module User's Guide (SLAU575). It's essential to follow this guide to minimize noise, ensure proper signal routing, and optimize the device's performance.
  • The ADC32RF83IRRHT has a built-in calibration mechanism. Refer to the device's datasheet (SBAS635) and the ADC32RF83IRRHT Calibration and Verification Guide (SBAS636) for step-by-step calibration procedures. Additionally, the TI-provided software development kit (SDK) includes calibration scripts and tools to simplify the process.
  • The ADC32RF83IRRHT can handle input powers up to +10 dBm. However, it's recommended to operate the device within the specified input power range of -10 dBm to +5 dBm for optimal performance and to prevent damage to the device.
  • Yes, the ADC32RF83IRRHT is designed to support multi-channel configurations. The device has four analog-to-digital converter (ADC) channels, and each channel can be configured independently. Refer to the device's datasheet and the ADC32RF83IRRHT User's Guide (SBAS634) for more information on multi-channel operation.
  • The ADC32RF83IRRHT has a latency of approximately 10 clock cycles. This latency should be considered when designing your system, especially in applications requiring real-time processing or low-latency data transfer. You can find more information on latency and its impact on system design in the ADC32RF83IRRHT User's Guide (SBAS634).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADC32RF83IRRHT Overview

Use the download button to access the ADC32RF83IRRHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADC32, or try a keyword search, such as Other Telecom ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
