ADC3583IRSBR - Texas Instruments

Description: Single-channel, 18-bit, 65-MSPS, low-noise, ultra-low-power ADC

Download ADC3583IRSBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

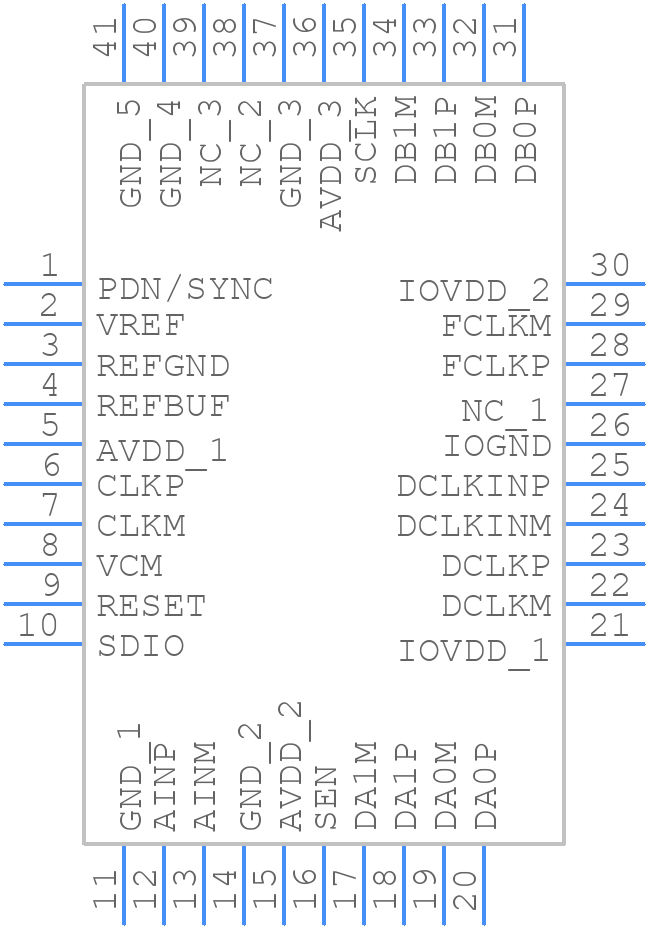

ADC3583IRSBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC3583IRSBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040E
click to zoom
3D Models
ADC3583IRSBR - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040E
click to zoom

ADC3583IRSBR Details

  • Manufacturer Part Number:

    ADC3583IRSBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 3.2

  • Analog Input Voltage-Max:

    3.2 V

  • Analog Input Voltage-Min:

    -3.2 V

  • Conversion Time-Max:

    0.015 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00724%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.20SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    65 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADC3583IRSBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout and routing guide in the ADC3583IRSBR Evaluation Module User's Guide (SLAU445). It recommends a symmetrical layout, minimizing trace lengths, and using a solid ground plane to reduce noise and improve performance.
  • The ADC3583IRSBR requires a high-speed clock input, which can be challenging to handle. Texas Instruments recommends using a clock buffer or a clock generator with a low jitter and a high-frequency output to ensure a stable clock signal. Additionally, the clock input should be routed as a differential pair to minimize noise and skew.
  • The ADC3583IRSBR has a high-bandwidth input, which makes it susceptible to noise and aliasing. Texas Instruments recommends using a low-pass filter or a band-pass filter to remove high-frequency noise and aliasing. The filter design should be optimized for the specific application and signal frequency range.
  • The ADC3583IRSBR has an internal calibration mechanism, but it may require additional external calibration and compensation for temperature and voltage variations. Texas Instruments recommends using an external calibration circuit and a temperature sensor to monitor the temperature and adjust the calibration accordingly. Additionally, the ADC3583IRSBR has a built-in voltage reference, which can be used to compensate for voltage variations.
  • The ADC3583IRSBR has a maximum data transfer rate of 250 MSPS, but the actual data transfer rate depends on the specific application and the interface used. Texas Instruments recommends using a high-speed interface such as JESD204B or LVDS to achieve the maximum data transfer rate.
