ADC3583IRSBT - Texas Instruments

Description: Single-channel, 18-bit, 65-MSPS, low-noise, ultra-low-power ADC

Download ADC3583IRSBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

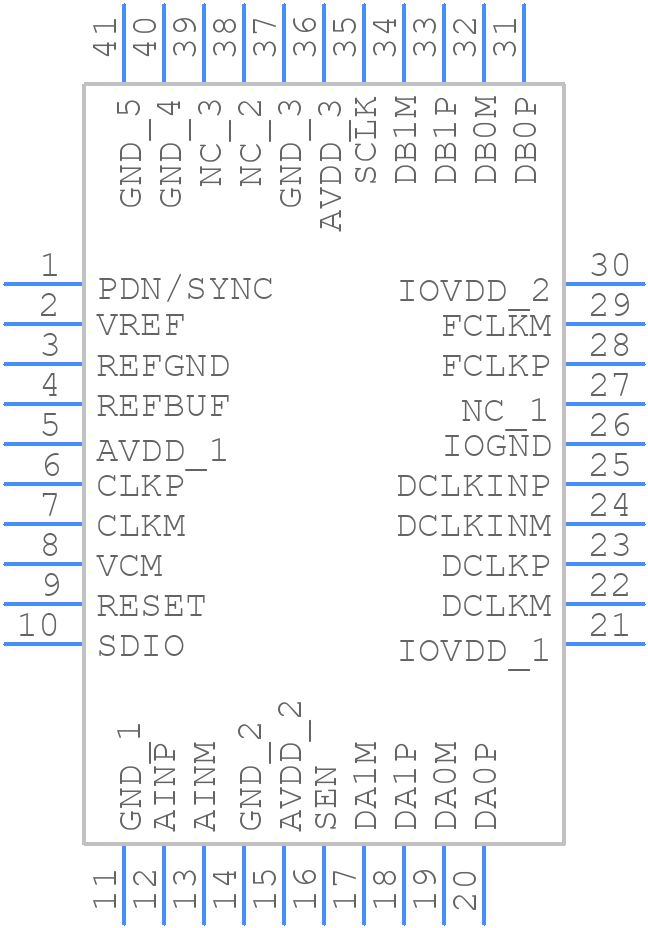

ADC3583IRSBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADC3583IRSBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSB0040E
click to zoom
3D Models
ADC3583IRSBT - Texas Instruments - 3D model - Quad Flat No-Lead - RSB0040E
click to zoom

ADC3583IRSBT Details

  • Manufacturer Part Number:

    ADC3583IRSBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-40

  • Country Of Origin:

    Philippines

  • ECCN Code:

    3A991.C.4

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Peak-to-peak input voltage range(V) : 3.2

  • Analog Input Voltage-Max:

    3.2 V

  • Analog Input Voltage-Min:

    -3.2 V

  • Conversion Time-Max:

    0.015 µs

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-PQCC-N40

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.00724%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT, OFFSET BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.20SQ,16

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    65 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    53 mA

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADC3583IRSBT Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital signals separate. Use short, direct traces for the analog inputs and avoid crossing digital signals over the analog signals. Also, use a common-mode filter capacitor (e.g., 10nF) between the analog input pins and the analog ground pin.
  • The internal reference voltage can be configured using the REFSEL pin. Connect the REFSEL pin to VCC (logic high) to enable the internal 2.5V reference voltage. Alternatively, connect it to GND (logic low) to use an external reference voltage. Ensure the reference voltage is stable and within the recommended range (2.0V to 2.7V) for accurate conversions.
  • The maximum sampling rate of the ADC3583IRSBT is 250kSPS. However, the power consumption increases with the sampling rate. At 250kSPS, the typical power consumption is around 12.5mW. To reduce power consumption, consider reducing the sampling rate or using the device's power-down mode.
  • The ADC3583IRSBT outputs 16-bit data in a two's complement format. The output data is byte-ordered as MSB (most significant byte) followed by LSB (least significant byte). Ensure your microcontroller or processor is configured to receive and process the data correctly.
  • The recommended input signal range is 0V to VCC (typically 3.3V or 5V). The input impedance is typically around 10kΩ. Ensure the input signal is within the recommended range and impedance to avoid signal attenuation or distortion.
