The ADS1120IRVAT is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
To optimize the ADS1120IRVAT's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, offset, and sampling rate, as well as configuring the internal reference voltage and clock source. Additionally, the ADC's input range and common-mode voltage should be considered to ensure optimal performance.
The ADS1120IRVAT's performance can be affected by temperature variations. The ADC's offset and gain drift with temperature, which can impact its accuracy. It is essential to consider the operating temperature range and compensate for these effects in the system design. The datasheet provides temperature-related specifications and graphs to help with this process.
To ensure EMC with the ADS1120IRVAT, it is essential to follow proper PCB design and layout practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering techniques. Additionally, the ADC's digital outputs should be properly terminated, and the system should be designed to minimize radiated emissions.
When using the ADS1120IRVAT in a multi-channel application, it is essential to consider the ADC's channel-to-channel crosstalk, which can impact the system's overall performance. The datasheet provides specifications for crosstalk, and the system design should take this into account. Additionally, the ADC's sampling rate and conversion time should be considered to ensure proper synchronization between channels.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1120IRVAT Overview

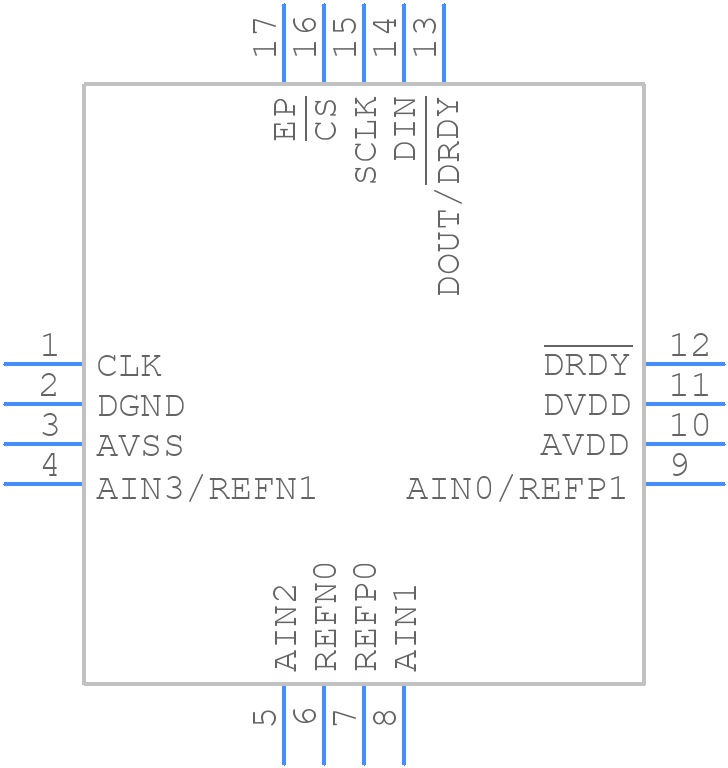

Use the download button to access the ADS1120IRVAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
