ADS112U04IRTET - Texas Instruments

Description: 16-bit, 2-kSPS, 4-ch, low-power, small-size delta-sigma ADC w/ PGA, VREF, 2x IDACs & UART interface

Download ADS112U04IRTET Model

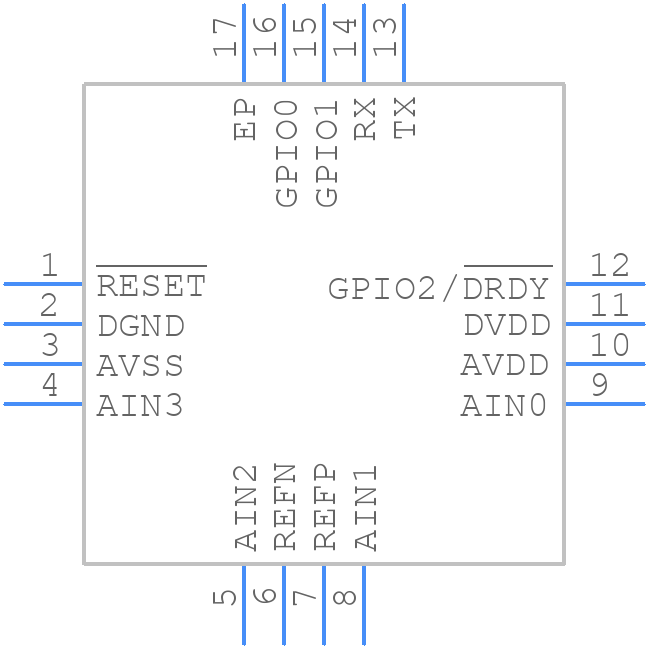

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS112U04IRTET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RTE  (S-PWQFN-N16)+
click to zoom
3D Models
ADS112U04IRTET - Texas Instruments  - 3D model - Quad Flat No-Lead - RTE  (S-PWQFN-N16)+
click to zoom

ADS112U04IRTET Details

  • Manufacturer Part Number:

    ADS112U04IRTET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2018-01-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.05 V

  • Analog Input Voltage-Min:

    -0.75 V

  • Conversion Time-Max:

    500 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    2

  • Negative Supply Voltage-Nom:

    -2.5 V

  • Number of Analog In Channels:

    4

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.002 MHz

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    0.51 mA

  • Supply Voltage-Min:

    2.3 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

ADS112U04IRTET Frequently Asked Questions (FAQs)

  • Texas Instruments provides a layout guide in the datasheet, but it's also recommended to follow general high-impedance analog layout practices, such as separating analog and digital grounds, using a solid ground plane, and minimizing noise coupling. Additionally, it's essential to keep the analog input traces short and away from digital signals.
  • To handle the high impedance of the analog inputs, it's recommended to use a buffer amplifier or an impedance-matching network to drive the input signal. This helps to reduce the input impedance and prevent signal attenuation. Additionally, the input signal should be driven from a low-impedance source, and the input traces should be kept short and shielded to minimize noise pickup.
  • To filter out noise and interference, it's recommended to use a combination of passive and active filtering techniques. A passive RC filter can be used to filter out high-frequency noise, while an active filter, such as a notch filter or a band-pass filter, can be used to filter out specific frequency bands. Additionally, shielding the input traces and using a ground plane can help to reduce electromagnetic interference (EMI).
  • To ensure accurate temperature measurement, it's essential to follow the recommended layout and routing guidelines for the internal temperature sensor. This includes keeping the temperature sensor pin away from heat sources, such as power supplies and digital circuits, and using a solid ground plane to reduce thermal gradients. Additionally, the temperature sensor should be calibrated using the recommended calibration procedure outlined in the datasheet.
  • The recommended power-up sequence for the ADS112U04IRTET is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the analog circuitry is powered up before the digital circuitry, which helps to prevent digital noise from coupling into the analog circuitry.
