The ADS1130IPW is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. TI recommends following a star-grounding scheme, keeping the analog and digital grounds separate, and placing the ADC close to the analog signal sources. Additionally, it's essential to minimize noise and interference by keeping the ADC away from high-frequency signals and switching regulators.
To optimize the ADS1130IPW's performance, you should consider factors such as the input signal range, sampling rate, and noise tolerance. TI provides an ADC Performance Calculator tool that can help you determine the optimal settings for your application. Additionally, you can consult the ADS1130IPW's datasheet and application notes for guidance on optimizing the ADC's performance.
The recommended power-up sequence for the ADS1130IPW is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the ADC's internal references and bias circuits are properly initialized before the digital interface is enabled. TI recommends a power-up sequence of AVDD > DVDD > CLKIN.
The ADS1130IPW outputs 24-bit digital data in a serial format. To handle this data, you'll need to use a microcontroller or FPGA with a serial interface (such as SPI or I2C). You'll also need to consider data formatting, error checking, and data processing in your application code. TI provides example code and application notes to help with data handling and processing.
The ADS1130IPW has a high noise tolerance, but it's still important to minimize noise in your design. TI recommends using a low-noise power supply, minimizing digital noise and interference, and using proper PCB layout and shielding techniques. Additionally, you can use the ADC's built-in noise-reduction features, such as the programmable gain amplifier and digital filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1130IPW Overview

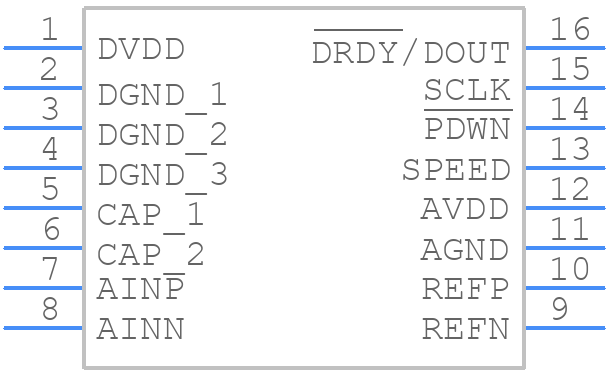

Use the download button to access the ADS1130IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
