- Part Number ADS1130IPWR
- Manufacturer Texas Instruments
- Pin Count 16
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW-16
- Released Date Jan 12, 2017
- Last Modified Date May 10, 2025 8:58 AM UTC
- Pinout / Pin List Click Here (Member Only)
ADS1130IPWR Details
-
Manufacturer Part Number:
ADS1130IPWR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSSOP
-
Package Description:
TSSOP-16
-
Pin Count:
16
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.30
-
Manufacturer:
Texas Instruments
ADS1130IPWR Frequently Asked Questions (FAQs)
-
The ADS1130IPWR is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. TI recommends following a star-grounding scheme, keeping the analog and digital grounds separate, and placing the ADC close to the analog signal sources. Additionally, it's essential to minimize noise and interference by keeping the ADC away from high-frequency signals and switching regulators.
-
To optimize the ADS1130IPWR's performance, you should consider factors such as the input signal range, sampling rate, and noise tolerance. TI provides an ADC Performance Calculator tool that can help you determine the optimal settings for your application. Additionally, you can consult the device's datasheet and application notes for guidance on optimizing the ADC's performance.
-
The recommended power-up sequence for the ADS1130IPWR is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). This ensures that the ADC's internal analog circuitry is powered up before the digital interface. Additionally, it's essential to ensure that the power supplies are stable and within the recommended operating range before starting the ADC's conversion.
-
The ADS1130IPWR outputs 24-bit digital data in a serial format. To handle this data, you'll need to use a microcontroller or FPGA with a serial interface (such as SPI or I2C). You'll also need to consider the data formatting, byte ordering, and error handling. TI provides example code and application notes to help you interface with the ADC and process its output data.
-
The ADS1130IPWR has a conversion latency of approximately 1.5 ms, which can affect the overall system performance. To minimize the impact of latency, you can use techniques such as pipelining, double buffering, or using a FIFO to store the ADC's output data. Additionally, you can consider using a faster ADC or optimizing your system's architecture to reduce the latency.
Trust Checks
System Verified
ADS1130IPWR Overview

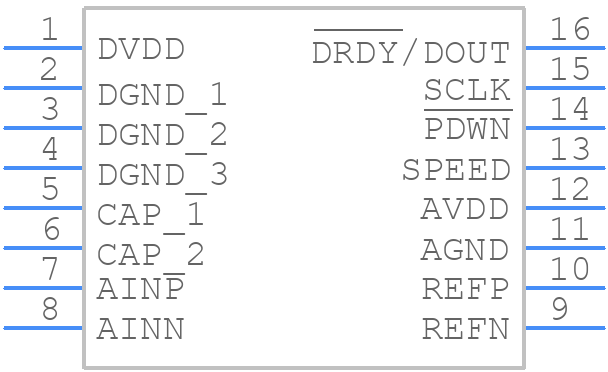

Use the download button to access the ADS1130IPWR schematic symbol, PCB footprint, and 3D model.
