The ADS1131ID is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. TI recommends a 4-layer PCB with a solid ground plane, and placing the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
The ADS1131ID's analog inputs have a high impedance, which can make them susceptible to noise and interference. To minimize this, TI recommends using a low-impedance signal source, such as an op-amp buffer, and keeping the analog input traces as short as possible. Additionally, shielding and guarding techniques can be used to reduce noise coupling.
The ADS1131ID has a built-in digital filter, but it's often necessary to add additional analog filtering to remove noise and interference. TI recommends using a low-pass filter with a cutoff frequency below the Nyquist frequency (half the sampling rate) to prevent aliasing. A simple RC filter or a more complex active filter can be used, depending on the specific application requirements.
The ADS1131ID has a built-in calibration mechanism, but it may require additional calibration steps depending on the application. TI recommends performing a system-level calibration, including the ADC, amplifiers, and sensors, to ensure optimal performance. This may involve adjusting gain and offset settings, as well as performing a linearity calibration.
The ADS1131ID's maximum sampling rate is 2500 samples per second (SPS), but this can be affected by the system's clock frequency, data conversion time, and other factors. TI recommends consulting the datasheet and application notes for specific guidance on achieving the highest possible sampling rate in a given system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1131ID Overview

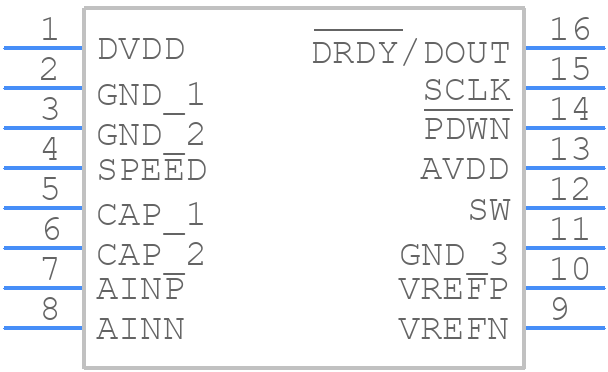

Use the download button to access the ADS1131ID schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
