ADS1131IDR - Texas Instruments

Description: 18-Bit, 80SPS, 1-Ch Delta-Sigma ADC w/ Powerdown Switch for Resistive Bridge Sensors & Weigh Scales

Download ADS1131IDR Model

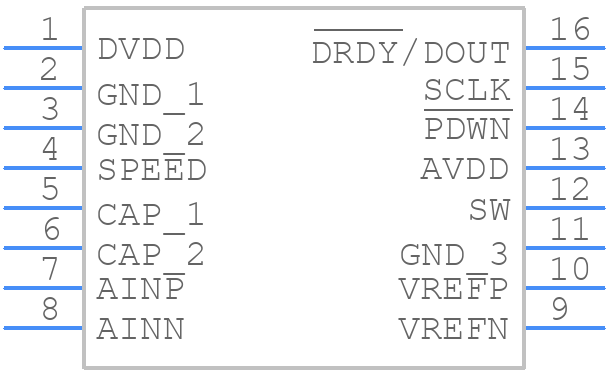

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS1131IDR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G16)
click to zoom
3D Models
ADS1131IDR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G16)
click to zoom

ADS1131IDR Details

  • Manufacturer Part Number:

    ADS1131IDR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-16

  • Pin Count:

    16

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    0.041 V

  • Analog Input Voltage-Min:

    -0.039 V

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    9.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Analog In Channels:

    1

  • Number of Bits:

    18

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, 8 BITS

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.008 MHz

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

ADS1131IDR Frequently Asked Questions (FAQs)

  • The ADS1131IDR is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the ADC's power pins.
  • To optimize the ADS1131IDR's performance, it is essential to understand the application's requirements and adjust the ADC's settings accordingly. This includes selecting the appropriate gain, offset, and sampling rate. Additionally, the ADC's internal calibration can be used to improve its performance. It is also recommended to use the ADC's built-in features, such as the programmable gain amplifier and the internal reference voltage.
  • The ADS1131IDR's performance can be affected by temperature changes. The ADC's offset and gain can drift with temperature, which can affect its accuracy. However, the ADS1131IDR has a built-in temperature sensor that can be used to compensate for these effects. It is recommended to use the ADC's internal calibration and temperature compensation features to minimize the impact of temperature on its performance.
  • To ensure the ADS1131IDR's accuracy and reliability, it is essential to follow proper design and layout practices. This includes using a well-regulated power supply, minimizing noise and interference, and using proper grounding and shielding techniques. Additionally, it is recommended to use the ADC's built-in diagnostic features, such as the cyclic redundancy check (CRC) and the internal diagnostic registers, to detect and correct errors.
  • Common pitfalls to avoid when designing with the ADS1131IDR include inadequate power supply decoupling, poor PCB layout and grounding, and insufficient noise filtering. Additionally, incorrect configuration of the ADC's registers, inadequate calibration, and insufficient error checking can also affect the ADC's performance. It is essential to carefully follow the datasheet and application notes to avoid these common pitfalls.
