The ADS1146IPW requires careful PCB layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADS1146IPW's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and shielding to minimize noise, and consider using the device's built-in calibration features.
The ADS1146IPW's digital output data should be handled carefully to avoid data corruption. Use a FIFO or a dedicated buffer to store the data, and consider using a CRC or checksum to ensure data integrity. Additionally, ensure the receiving device can handle the data rate and format.
To troubleshoot issues with the ADS1146IPW, start by verifying the power supply and clock signals. Check for proper device configuration and register settings. Use an oscilloscope to inspect the analog input signals and digital output data. Consult the datasheet and application notes for guidance on specific error codes and troubleshooting techniques.
Yes, the ADS1146IPW can be used in multi-channel applications. However, consider the following: each channel requires a separate ADC, and the device's multiplexer can be used to switch between channels. Ensure proper channel-to-channel isolation and consider using a separate reference voltage for each channel.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1146IPW Overview

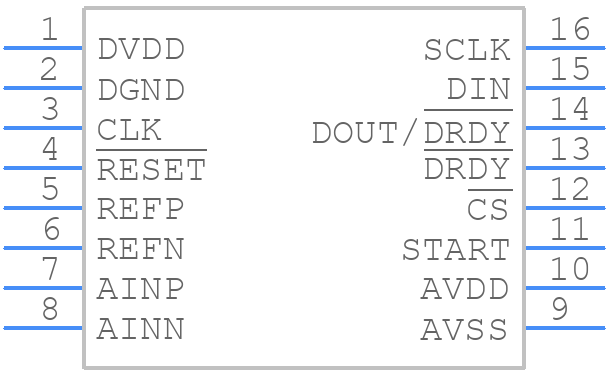

Use the download button to access the ADS1146IPW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
