The ADS1148IRHBR requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping analog and digital traces separate. Additionally, decoupling capacitors should be placed close to the device's power pins.
To optimize the ADC's performance, consider the following: choose the correct gain setting, adjust the sampling rate, and select the appropriate clock source. Additionally, ensure proper filtering and signal conditioning of the input signal, and consider using the device's built-in calibration features.
The ADS1148IRHBR outputs 24-bit data, which can be processed using a microcontroller or FPGA. Ensure proper synchronization and data alignment, and consider using a FIFO or buffer to handle the data stream. Additionally, consider using the device's built-in CRC feature to ensure data integrity.
To minimize power consumption and heat generation, consider the following: operate the device at the lowest possible clock frequency, use the power-down mode when not in use, and optimize the device's voltage regulator. Additionally, ensure proper thermal design and heat sinking to prevent overheating.
Common pitfalls to avoid include: inadequate power supply decoupling, poor layout and routing, insufficient analog signal filtering, and incorrect clock configuration. Additionally, ensure proper handling of the device's digital output data and avoid overloading the device's input channels.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1148IRHBR Overview

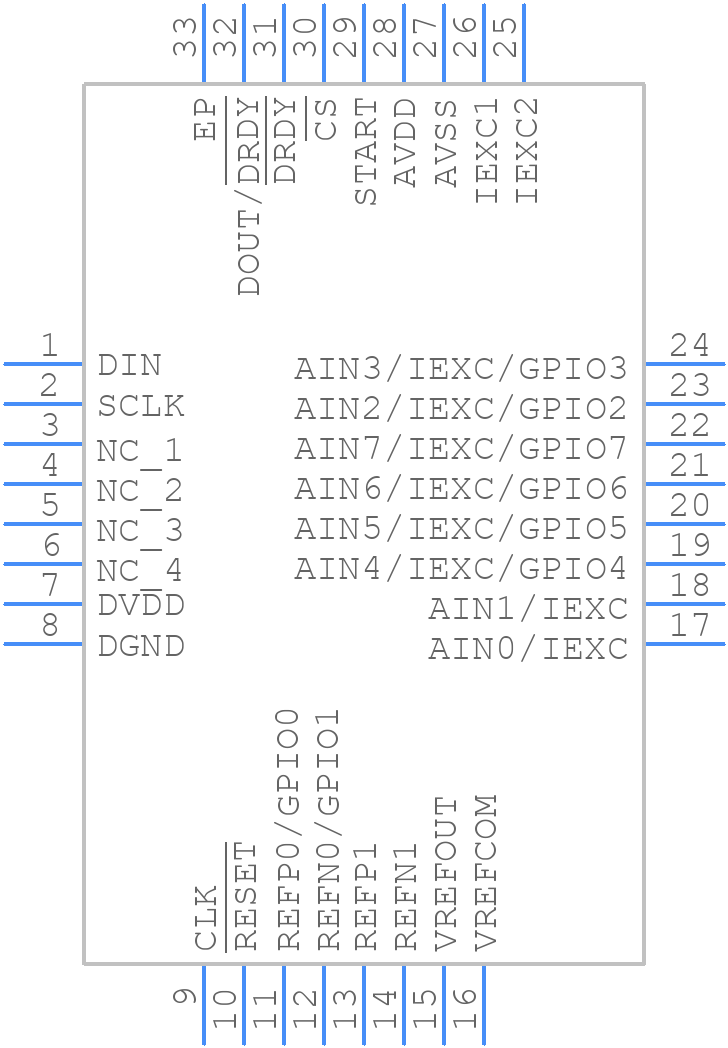

Use the download button to access the ADS1148IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
