Texas Instruments provides a recommended layout and placement guide in the ADS114S06BIPBS evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
Optimizing the ADS114S06BIPBS's performance requires understanding the application's specific requirements, such as signal frequency, amplitude, and noise tolerance. TI provides application notes and design guides that provide guidance on optimizing the ADC's performance, including selecting the right gain, filter settings, and clock frequency.
The ADS114S06BIPBS has a maximum input voltage of 5.5V, but it's recommended to keep the input voltage within the specified range of 0V to 5V to ensure accurate conversions and prevent damage to the device.
The ADS114S06BIPBS outputs 16-bit or 24-bit digital data, depending on the mode of operation. The data can be handled using a microcontroller or FPGA, and TI provides example code and software development kits (SDKs) to help with data processing and analysis.
The ADS114S06BIPBS has a typical power consumption of 12.5mW at 2.5V and 10ksps. Power consumption can be reduced by optimizing the clock frequency, using the device's power-down modes, and selecting the lowest possible supply voltage while maintaining the required performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS114S06BIPBS Overview

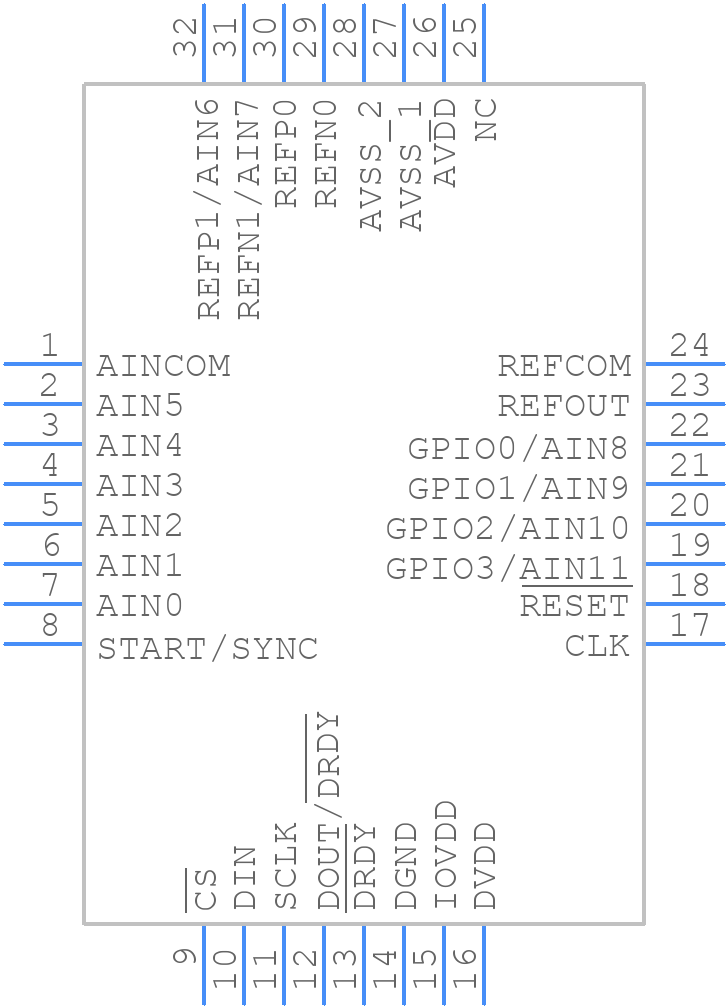

Use the download button to access the ADS114S06BIPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Analog to Digital Converters
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
