ADS114S06BIPBSR - Texas Instruments

Description: 16-Bit, 4kSPS, 6-Ch Delta-Sigma ADC With PGA and Voltage Reference for Low-Cost Applications

Download ADS114S06BIPBSR Model
Schematic
symbols

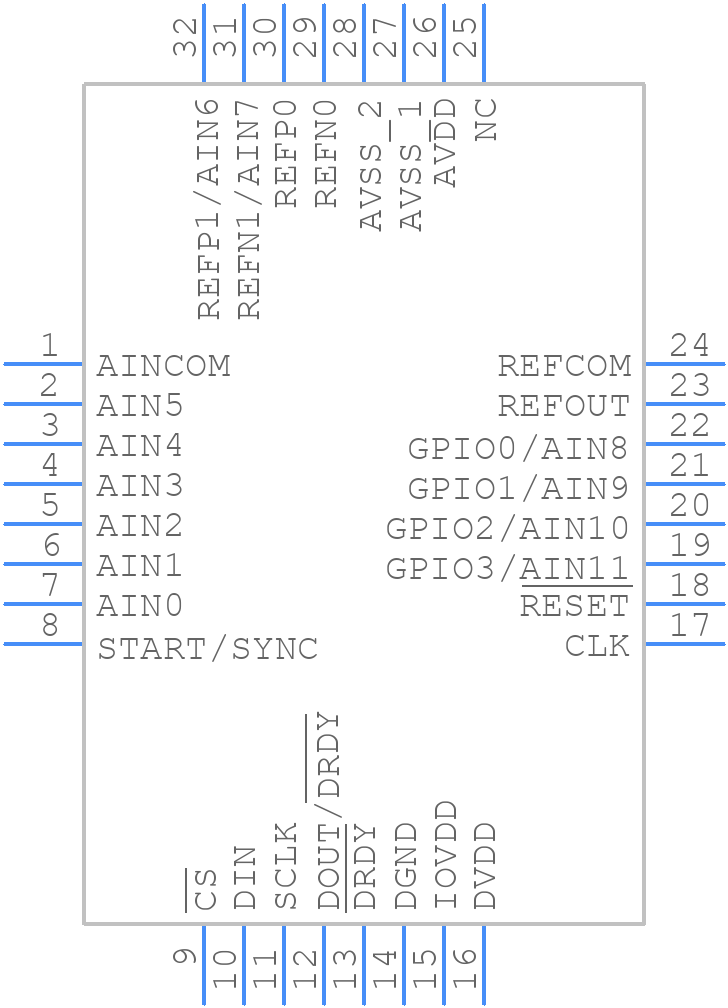

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADS114S06BIPBSR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom
3D Models
ADS114S06BIPBSR - Texas Instruments  - 3D model - Quad Flat Packages - PBS (S-PQFP-G32)
click to zoom

ADS114S06BIPBSR Details

  • Manufacturer Part Number:

    ADS114S06BIPBSR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TFQFP-32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2017-08-11

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Conversion Time-Max:

    0.406 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0025%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    6

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1.05 mm

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS114S06BIPBSR Frequently Asked Questions (FAQs)

  • The ADS114S06BIPBSR is a high-precision ADC, and its performance can be affected by the PCB layout and component placement. It is recommended to follow a star-grounding scheme, keep analog and digital grounds separate, and place the ADC close to the analog signal sources. Additionally, decoupling capacitors should be placed as close to the ADC as possible to minimize noise.
  • The optimal clock frequency for the ADS114S06BIPBSR depends on the specific application requirements. A higher clock frequency can provide faster conversion rates, but may also increase power consumption and noise. A lower clock frequency can reduce power consumption and noise, but may also reduce the conversion rate. The optimal clock frequency can be determined by considering the trade-offs between conversion rate, power consumption, and noise tolerance.
  • The recommended power-up sequence for the ADS114S06BIPBSR is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This sequence helps to ensure that the ADC's internal circuitry is properly initialized and that the device operates correctly.
  • The ADS114S06BIPBSR's digital output data should be handled carefully to ensure accurate and reliable data conversion. This includes using a suitable interface protocol (e.g., SPI or I2C), ensuring proper data synchronization, and using error detection and correction mechanisms (e.g., CRC or checksum) to detect and correct data errors.
  • The ADS114S06BIPBSR is a high-precision ADC that can be sensitive to temperature variations. To ensure reliable operation over temperature, it is recommended to follow proper thermal design practices, such as providing adequate heat sinking, using thermal interface materials, and ensuring good airflow around the device. Additionally, the device's temperature range should be considered during the design process to ensure that the ADC operates within its specified temperature range.
