ADS114S06IRHBR - Texas Instruments

Description: 16-Bit, 4kSPS, 6-Ch Delta-Sigma ADC with PGA and Voltage Reference for Precision Sensor Measurement

Download ADS114S06IRHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

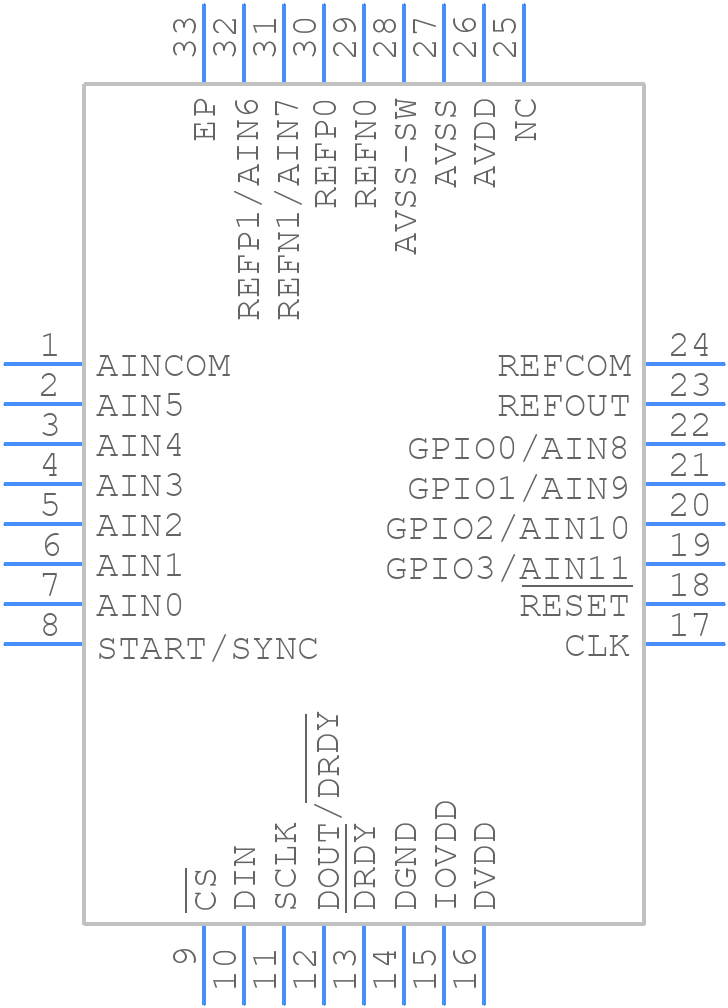

Symbol
ADS114S06IRHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS114S06IRHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032M
click to zoom
3D Models
ADS114S06IRHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032M
click to zoom

ADS114S06IRHBR Details

  • Manufacturer Part Number:

    ADS114S06IRHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN-32

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2017-03-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog Input Voltage-Max:

    5.2 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Conversion Time-Max:

    0.406 µs

  • Converter Type:

    ADC, DELTA-SIGMA

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Linearity Error-Max (EL):

    0.0015%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    6

  • Number of Bits:

    16

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -50 °C

  • Output Bit Code:

    2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    0.004 MHz

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    1.8 mA

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS114S06IRHBR Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and placing the ADS114S06IRHBR close to the analog signal sources. Additionally, decoupling capacitors should be placed as close as possible to the device's power pins, and analog and digital signals should be routed on separate layers to minimize crosstalk.
  • The internal voltage reference of the ADS114S06IRHBR can be configured by setting the REFSEL pin to either VREFP or VREFN. The voltage reference can also be bypassed by connecting an external reference voltage to the REFIN pin. It's recommended to use a low-noise, low-impedance voltage source for the reference voltage.
  • The maximum sampling rate of the ADS114S06IRHBR is 2 kSPS. The sampling rate affects the device's power consumption, with higher sampling rates resulting in higher power consumption. The device's power consumption can be reduced by lowering the sampling rate or by using the device's power-down mode.
  • The ADS114S06IRHBR's digital output data is available on the DOUT pin and is in a 24-bit, two's complement format. The data is output in a serial format, with the most significant bit (MSB) first. The data can be read using a serial interface, such as SPI or I2C.
  • The ADS114S06IRHBR's input impedance is typically around 10 GΩ. The input impedance affects the device's performance by determining the amount of signal attenuation and noise pickup. A high input impedance is desirable to minimize signal attenuation and noise pickup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS114S06IRHBR Overview

Use the download button to access the ADS114S06IRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11, or try a keyword search, such as Analog to Digital Converters

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
